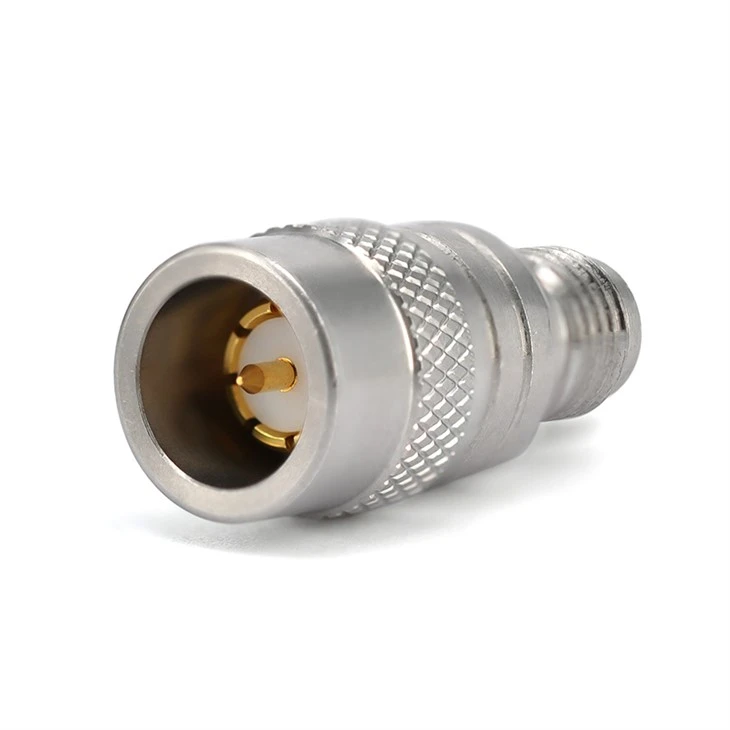

SMA adaptè
Seri a SMA kowaksyal RF cartes yo se ranje a aplikasyon larj ak varyete nan pi gwo nan mitan tout seri adaptè. Gen apeprè dè santèn de kalite si ou vle. Frekans maksimòm opere li yo ka rive jwenn jiska 26.5 GHz. Pami yo, yo yo fèt ak devlope dapre twa Gwoup Mizik frekans diferan nan 6G, 18g ak 26.5g pou pwodwi aplikasyon an.
Dekri teren
Pwodwi Entwodiksyon
Seri a SMA kowaksyal RF cartes yo se ranje a aplikasyon larj ak varyete nan pi gwo nan mitan tout seri adaptè. Gen apeprè dè santèn de kalite si ou vle. Frekans maksimòm opere li yo ka rive jwenn jiska 26.5 GHz. Pami yo, yo yo fèt ak devlope dapre twa Gwoup Mizik frekans diferan nan 6G, 18g ak 26.5g pou pwodwi aplikasyon an.
Materyèl pwodwi
Se kondiktè deyò a nan kò Connector SMA a anjeneral te fè nan materyèl metal tankou kwiv oswa asye pur. Li jwe yon wòl enpòtan anpil nan pwoteksyon ak transmisyon siyal. Estrikti silendrik li yo antoure kondiktè enteryè a ak dyelèktrik, ki bay yon chemen ki ba-rezistans pou aktyèl la retounen nan siyal la elektwomayetik, konsa asire estabilite a ak entegrite nan transmisyon an siyal.
Pwodwi kò style
Konektè SMA yo disponib nan divès kalite fòm kò, ki gen ladan kalite dwat, kalite ang dwat, 4- twou mòn bride, kalite mòn klwazon, ak byen fèmen kalite ti mòn kalite.
FAQ akizisyon
Pwodwi done spesifikasyon
|
Konfigirasyon |
|
|
Connector 1 Kalite |
Sma |
|
Connector 1 enpedans |
50 om |
|
Connector 1 polarite |
Estanda |
|
Connector 2 kalite |
SMA/GPPO/GPO/2.4mm/2.92mm/3.5mm/N/TNC/BNC/SSMC/MMCX/IPEX/SSMA |
|
Connector 2 enpedans |
50 om |
|
Connector 2 polarite |
Estanda |
|
Connector Mount Metòd |
Okenn |
|
Style kò adaptè |
Dwat/4 bride twou/klwazon mòn/ang dwat/ |
|
Enfòmasyon sou materyèl yo |
|
|
Sant Kontak |
Kib lò plake |
|
Kontak ekstèn |
Kwiv lò plake / asye pur |
|
Kò |
Kwiv lò plake / asye pur |
|
Dielèktrik |
PEI/PTFE/Glass |
|
Done anviwònman |
|
|
Range Tanperati |
-55 degre nan +165 degre |
|
2011/65/Inyon Ewopeyen (ROHS) |
Konfòme |
Kalite adaptè SMA
|
SMA RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|
Fr 1- sma-jjs |
|
|
Dc -18 GHz |
1.15 |

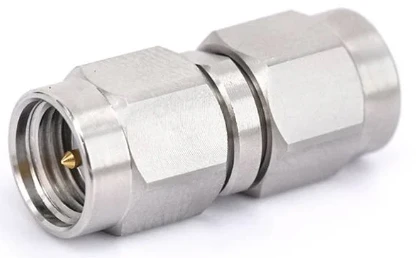

Sma gason pou sma gason |
|

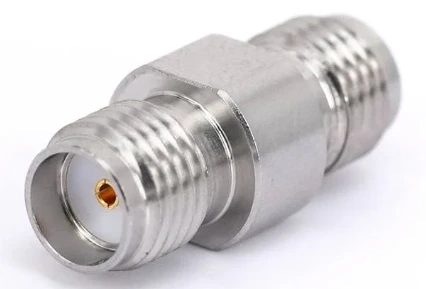

Fr 1- sma-kks |
|
|
Dc -18 GHz |
1.15 |

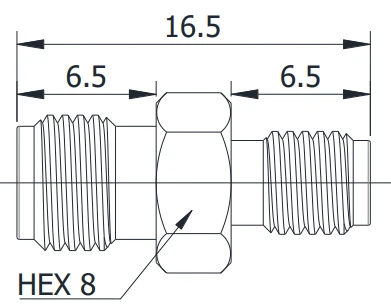

Sma fi a sma fi |
|

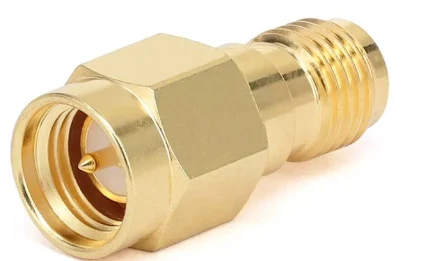

Fr 1- sma-jks |
|
|
Dc -18 GHz |
1.15 |
Sma gason pou sma fi |
|

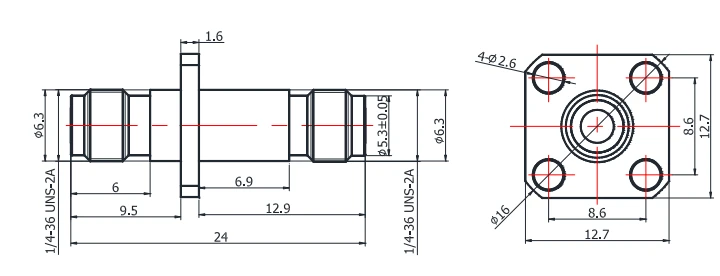

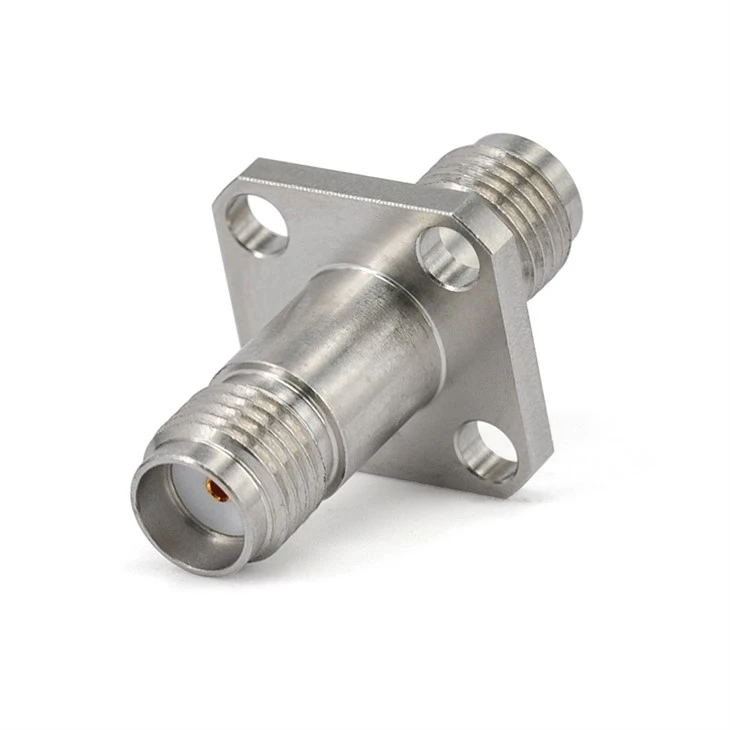

Fr 1- sma-kfkg -1 |
|
|
Dc -18 GHz |
1.15 |

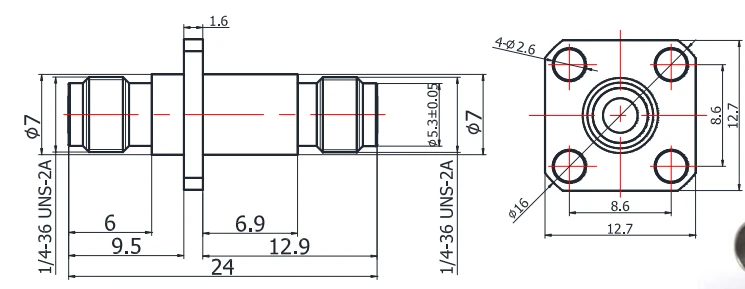

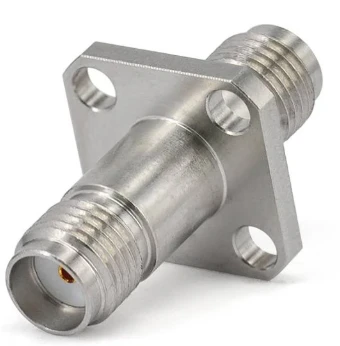

SMA Fi a SMA Fi ak 4 bride twou |
|
Fr 1- sma-kfkg |
|
|
Dc -26. 5GHz |
1.15 |
SMA Fi a SMA Fi ak 4 bride twou |
|
Fr 1- sma-kykg -1 |
|
|
Dc -26. 5GHz |
1.25 |

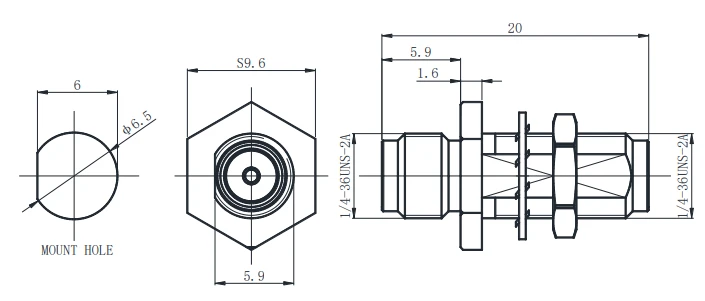

Sma fi a sma fi ak klwazon mòn |
|
Fr 1- sma-jfkg |
|
|
Dc -18 GHz |
1.20 |

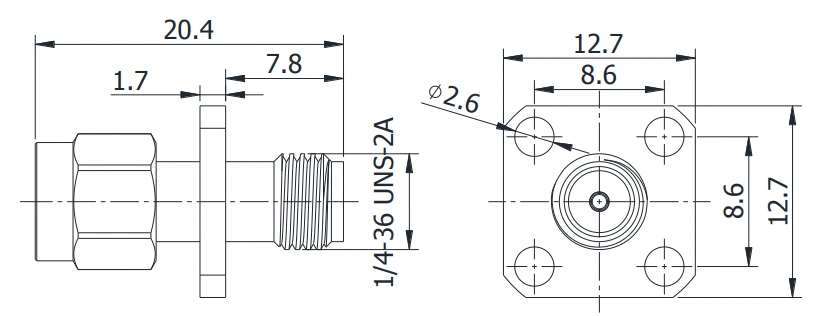

SMA Gason Pou SMA Fi ak 4 bride twou |
|
Fr 1- sma-jwjs -18 g |
|
|
Dc -18 GHz |
1.25 |
Sma gason nan sma gason ak ang dwat |
|
Fr 1- sma-kwks -18 g |
|
|
Dc -18 GHz |
1.25 |
Sma fi a sma fi ak ang dwat |
|
Fr 1- sma-jwks -18 g |
|
|
Dc -18 GHz |
1.25 |
Sma gason nan sma fi ak ang dwat |
|

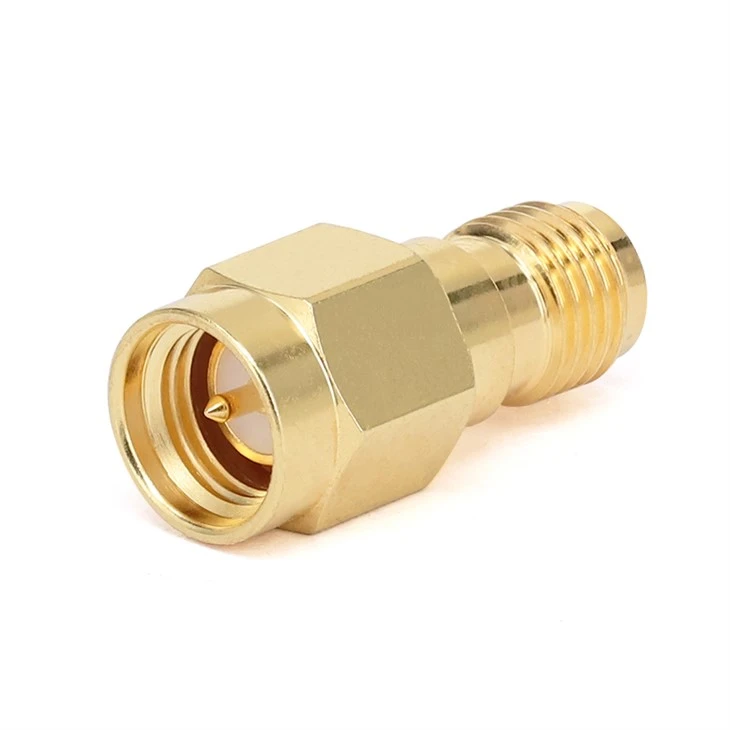

Fr 1- sma-jk |
|
|
Dc -18 GHz |
1.25 |
Sma gason pou sma fi |
|
Fr 1- sma-kk-e |
|
|
Dc -18 GHz |
1.25 |
Sma fi a sma fi |
|
Fr 1- sma-kk1 |
|
|
Dc -18 GHz |
1.25 |
Sma fi a sma fi |
|

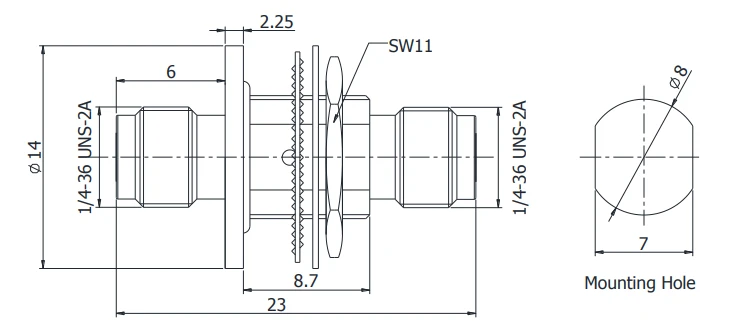

Fr 1- sma-kyk1 |
|
|
Dc -18 GHz |
1.25 |

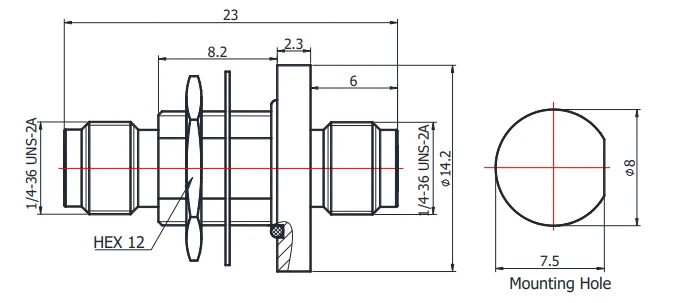

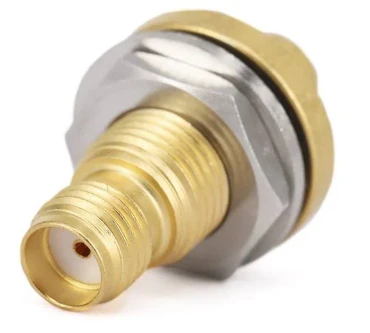

Sma fi a sma fi ak klwazon mòn |
|
Fr 1- smam-kyk |
|
|
Dc -18 GHz |
1.35 |
SMA Fi a SMA Fi ak klwazon mòn ak sere vakyòm |
|
Fr 1- qsma/sma-jks |
|
|
Dc -18 GHz |
1.25 |
Rapid sma gason sma fi |
|

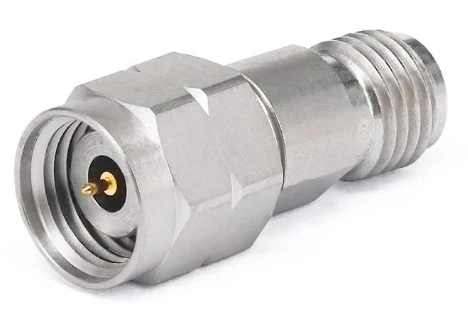

SMA a 2.4mm RF adaptè |
|||||
|
Sku |
Desen |
Fequency |
VSWR |
Deskripsyon tape |
|
|
Fr 1- sma/2. 4- kJs |
|
|
Dc -26. 5GHz |
1.15 |

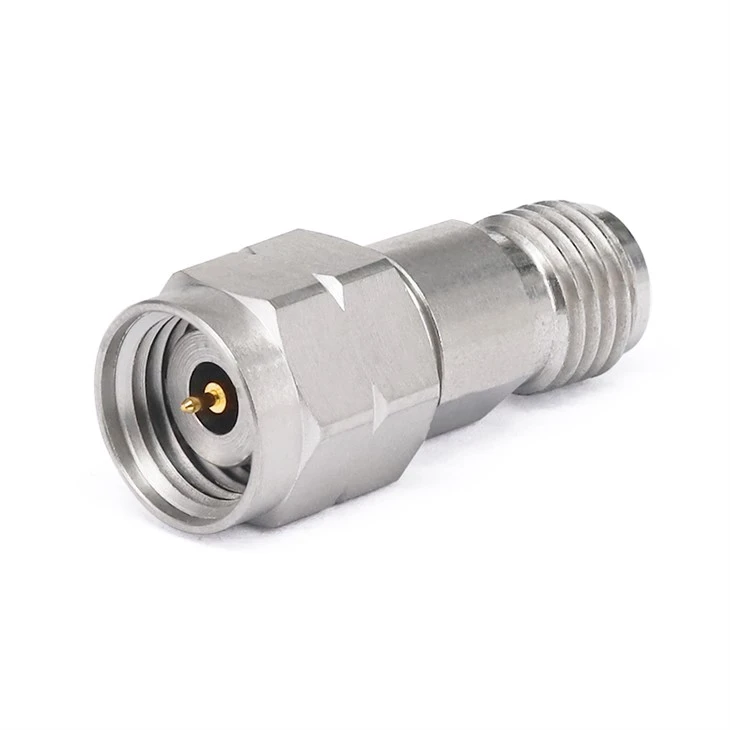

Sma fi a 2.4mm gason |
|

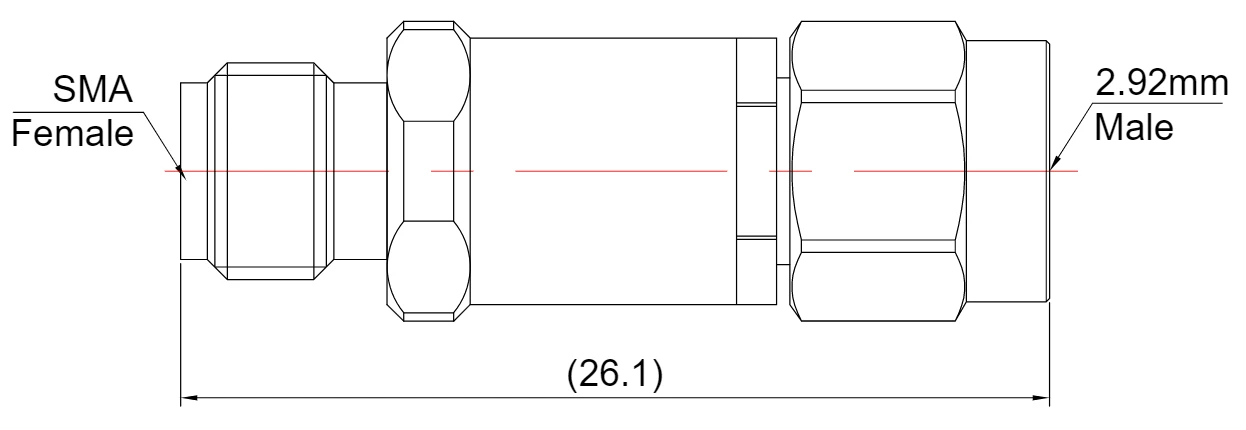

Sma pou 2.92mmRF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|

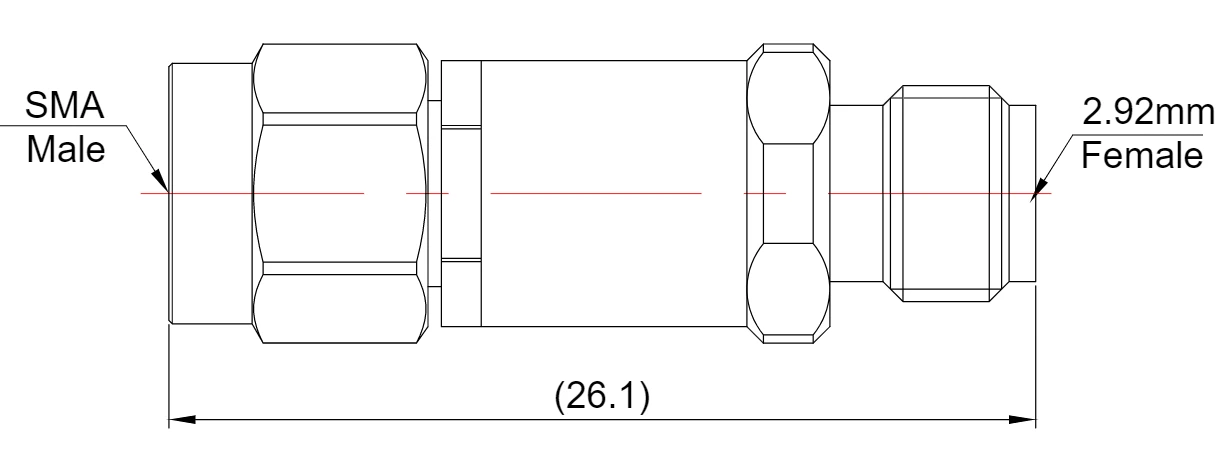

Fr 1- sma/2. 92- jjs |
|
|
Dc -18 GHz |
1.15 |

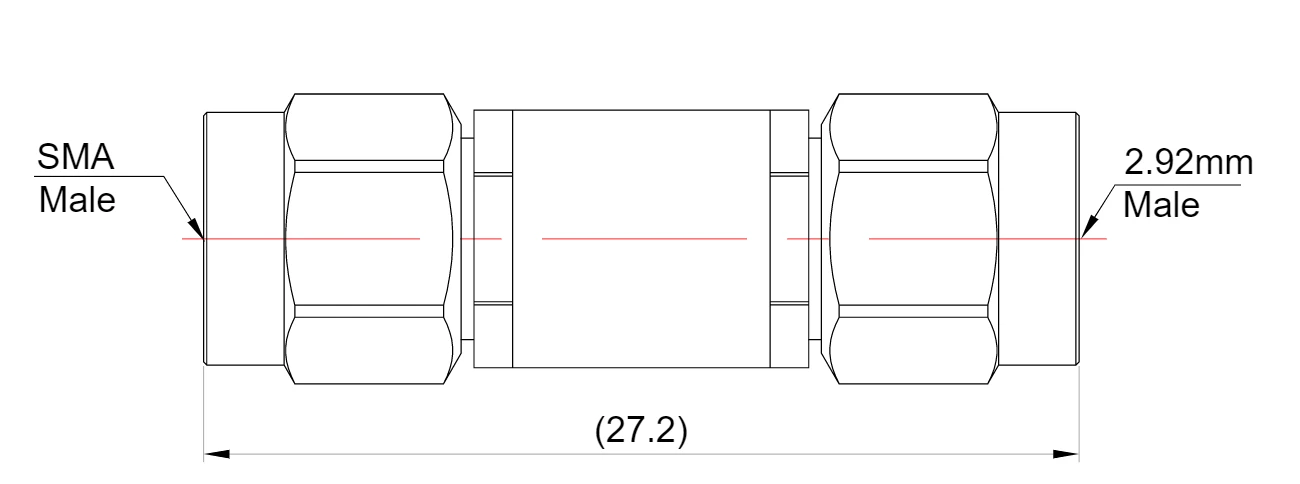

Sma gason a 2.92mm gason |
|
Fr 1- sma/2. 92- kks |
|
|
Dc -18 GHz |
1.15 |

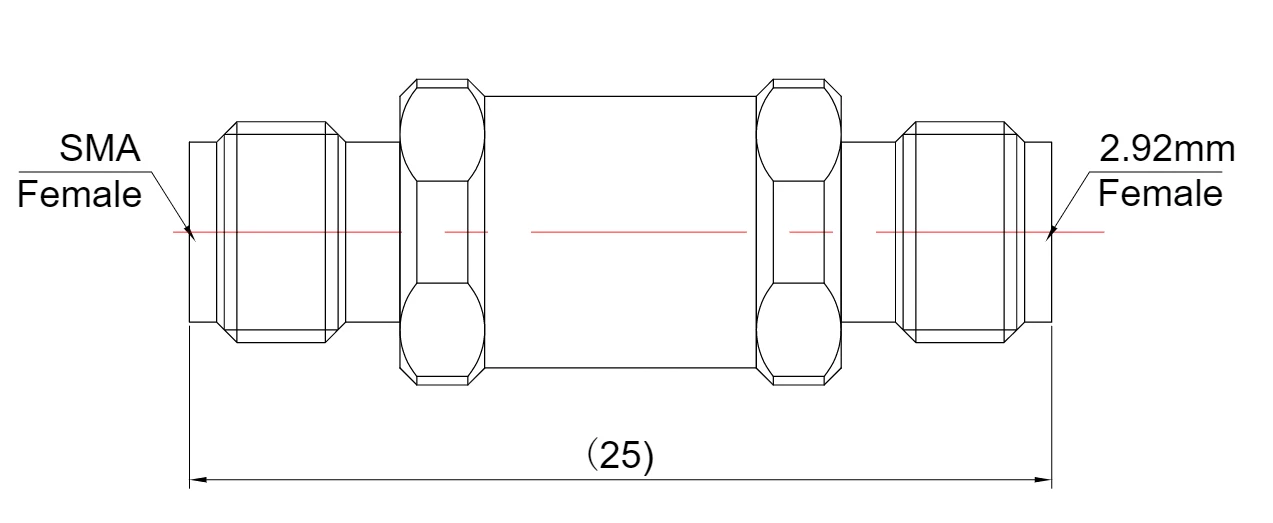

Sma fi a 2.92mm fi |
|
Fr 1- sma/2. 92- jks |
|
|
Dc -18 GHz |
1.15 |
Sma gason a 2.92mm fi |
|
Fr 1- sma/2. 92- kJs |
|
|
Dc -18 GHz |
1.15 |
Sma fi a 2.92mm gason |
|
Sma pou n rf adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|

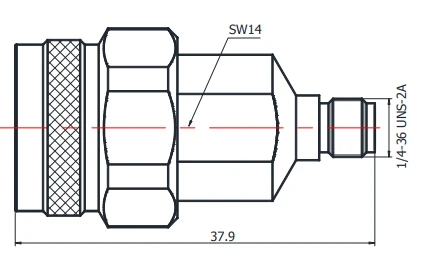

Fr 1- n/sma-jjs |
|
|
Dc -18 GHz |
1.15 |
N gason pou sma gason |
|
Fr 1- n/sma-kks |
|
|
Dc -18 GHz |
1.15 |

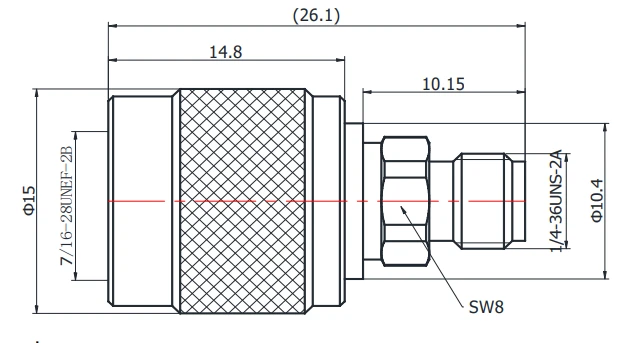

N fi a sma fi |
|
Fr 1- n/sma-jks |
|
|
Dc -18 GHz |
1.15 |
N gason pou sma fi |
|
Fr 1- n/sma-kJs |
|
|
Dc -18 GHz |
1.15 |
N fi a sma gason |
|
Fr 1- n/sma-kykg |
|
|
Dc -18 GHz |
1.15 |

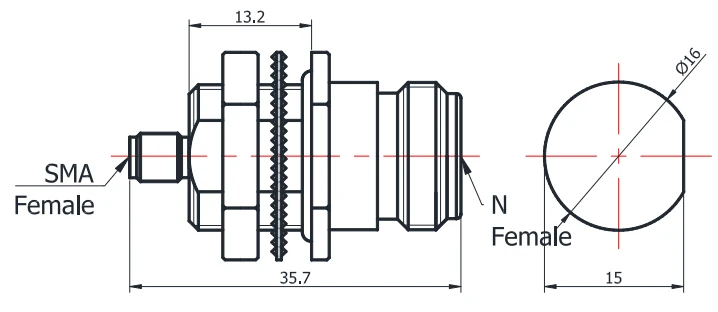

N fi a sma fi ak klwazon mòn |
|

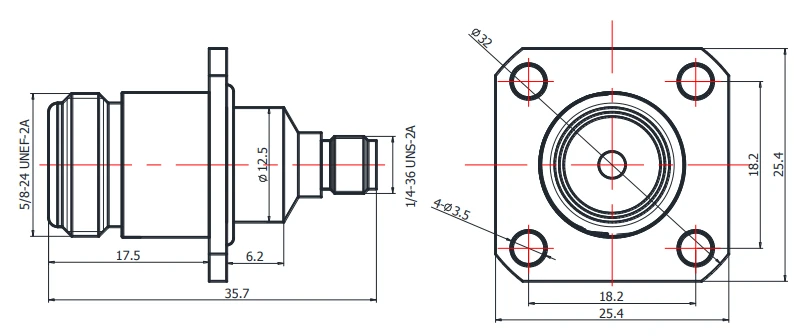

Fr 1- n/sma-kfkg |
|
|
Dc -18 GHz |
1.15 |
N fi a sma fi ak 4 bride twou |
|
SMA TNC RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|

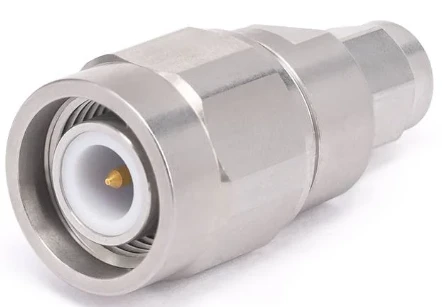

Fr 1- TNC/sma-JJS |
|
|
Dc -18 GHz |
1.25 |
Tnc gason nan sma gason |
|
Fr 1- TNC/sma-kks |
|
|
Dc -18 GHz |
1.25 |

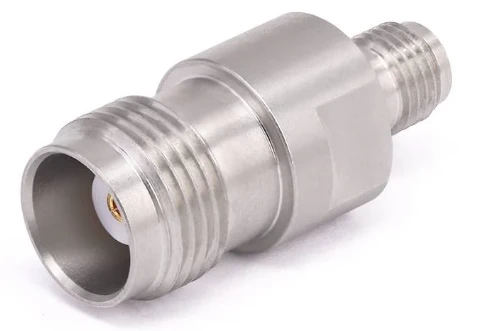

Tnc fi a sma fi |
|

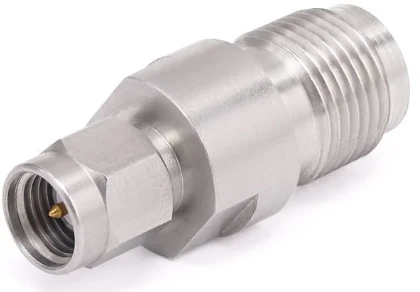

Fr 1- TNC/SMA-JKS |
|
|
Dc -18 GHz |
1.25 |
Tnc gason to sma fi |
|
Fr 1- TNC/Sma-KJS |
|
|
Dc -18 GHz |
1.25 |
Tnc fi a sma gason |
|
Fr 1- tnc/sma-jj |
|
|
Dc -3 GHz |
1.25 |
Tnc gason nan sma gason |
|
Fr 1- TNC/sma-kk |
|
|
Dc -3 GHz |
1.25 |
Tnc fi a sma fi |
|
Fr 1- TNC/SMA-JK |
|
|
Dc -3 GHz |
1.25 |
Tnc gason to sma fi |
|
Fr 1- TNC/sma-kJ |
|
|
Dc -3 GHz |
1.25 |
Tnc fi a sma gason |
|

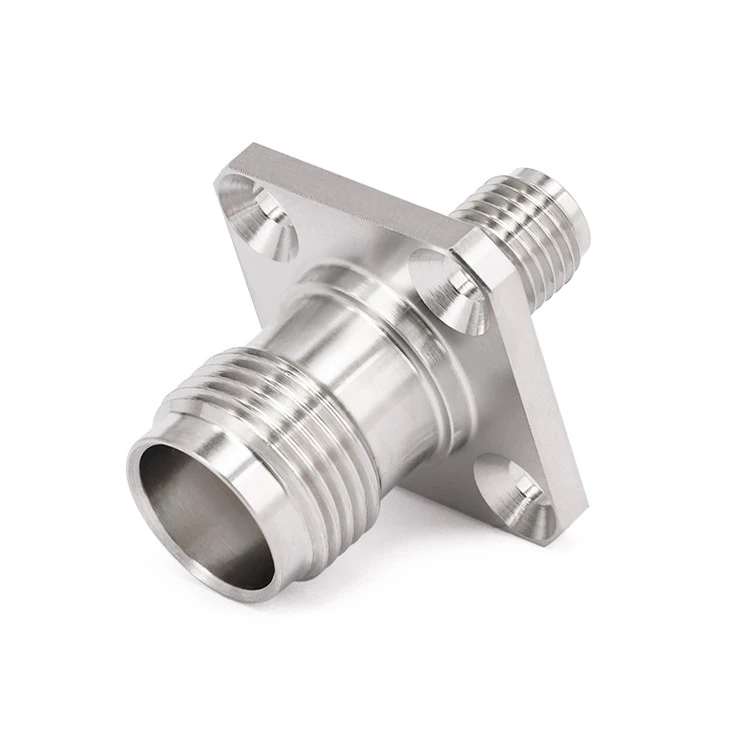

Fr 1- TNC/Sma-KFK1 |
|
|
Dc -4 GHz |
1.25 |
Tnc fi a sma fi ak 4 bride twou |
|
SMA BNC RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|
Fr 1- Bnc/sma-jjs |
|
|
Dc -18 GHz |
1.15 |
BNC Gason Pou SMA Gason |
|
Fr 1- BNC/SMA-KKS |
|
|
Dc -18 GHz |
1.15 |
Bnc fi a sma fi |
|
Fr 1- BNC/SMA-JKS |
|
|
Dc -18 GHz |
1.15 |
BNC gason nan sma fi |
|
Fr 1- BNC/Sma-KJS |
|
|
Dc -18 GHz |
1.15 |
Bnc fi a sma gason |
|
SMA pou GPPO (Mini-SMP) RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|
Fr 1- sma/gppo-jj |
|
|
Dc -18 GHz |
1.20 |
Sma gason gppo gason |
|
Fr 1- sma/gppo-kk |
|
|
Dc -18 GHz |
1.20 |
Sma fi gppo fi |
|
Fr 1- sma/gppo-jk |
|
|
Dc -18 GHz |
1.20 |
Sma gason gppo fi |
|
Fr 1- sma/gppo-kJ |
|
|
Dc -18 GHz |
1.20 |
Sma fi gppo gason |
|
SMA pou GPO (SMP) RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|
Fr 1- sma/gpo-jj |
|
|
Dc -18 GHz |
1.20 |
Sma gason gpo gason |
|

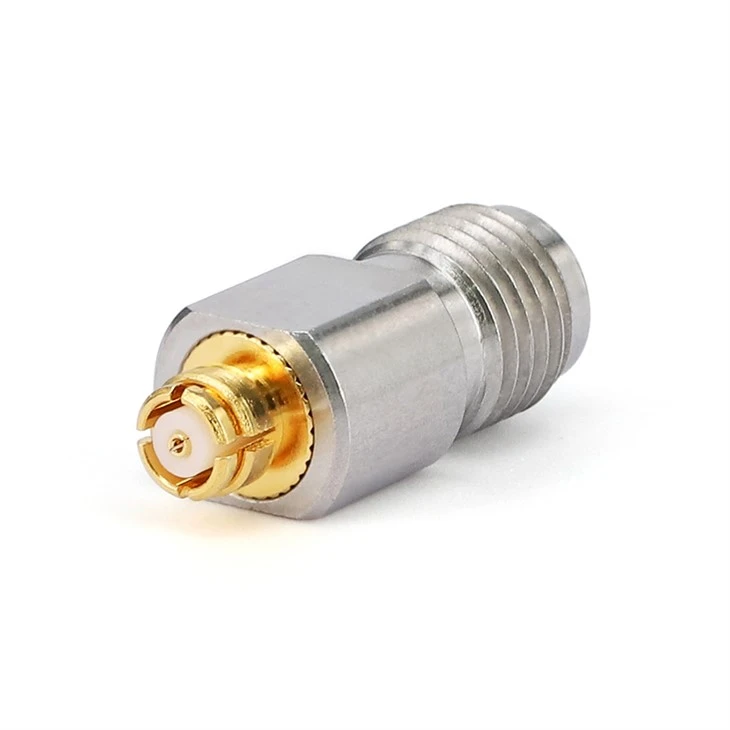

Fr 1- sma/gpo-kk |
|
|
Dc -18 GHz |
1.20 |
Sma fi gpo fi |
|
Fr 1- sma/gpo-jk |
|
|
Dc -18 GHz |
1.20 |
Sma gason gpo fi |
|
Fr 1- sma/gpo-kJ |
|
|
Dc -18 GHz |
1.20 |
Sma fi gpo gason |
|
SMA SSMA RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|
Fr 1- sma/ssma-jj |
|
|
Dc -27 GHz |
1.25 |
Sma gason pou ssma gason |
|
Fr 1- sma/ssma-kk |
|
|
Dc -6 GHz |
1.25 |
Sma fi a ssma fi |
|
Fr 1- sma/ssma-jk |
|
|
Dc -18 GHz |
1.25 |
Sma gason ssma fi |
|
Fr 1- sma/ssma-kJ |
|
|
Dc -18 GHz |
1.25 |
Sma fi a ssma gason |
|
SMA SSMC RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|
Fr 1- sma/ssmc-jj |
|
|
Dc -6 GHz |
1.20 |
Sma gason pou ssmc gason |
|
Fr 1- sma/ssmc-kk |
|
|
Dc -6 GHz |
1.20 |
Sma fi a ssmc fi |
|
Fr 1- sma/ssmc-jk |
|
|
Dc -6 GHz |
1.20 |
Sma gason pou ssmc fi |
|
Fr 1- sma/ssmc-kJ |
|
|
Dc -6 GHz |
1.20 |
Sma fi a ssmc gason |
|

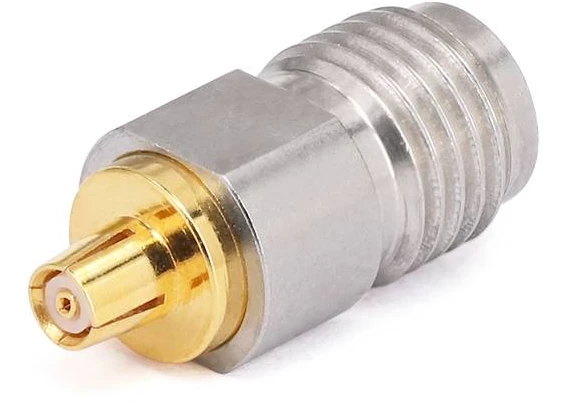

Sma pou mcx rf adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|
Fr 1- sma/mmcx-jj |
|
|
Dc -6 GHz |
1.20 |
Sma gason mmcx gason |
|
Fr 1- sma/mmcx-kk |
|
|
Dc -6 GHz |
1.20 |
Sma fi a mmcx fi |
|
Fr 1- sma/mmcx-jk |
|
|
Dc -6 GHz |
1.20 |
Sma gason pou mmcx fi |
|
Fr 1- sma/mmcx-kJ |
|
|
Dc -6 GHz |
1.20 |
Sma fi a mmcx gason |
|
SMA IPEX RF adaptè |
|||||
|
Sku |
Desen |
Abitid |
VSWR |
Deskripsyon tape |
|
|

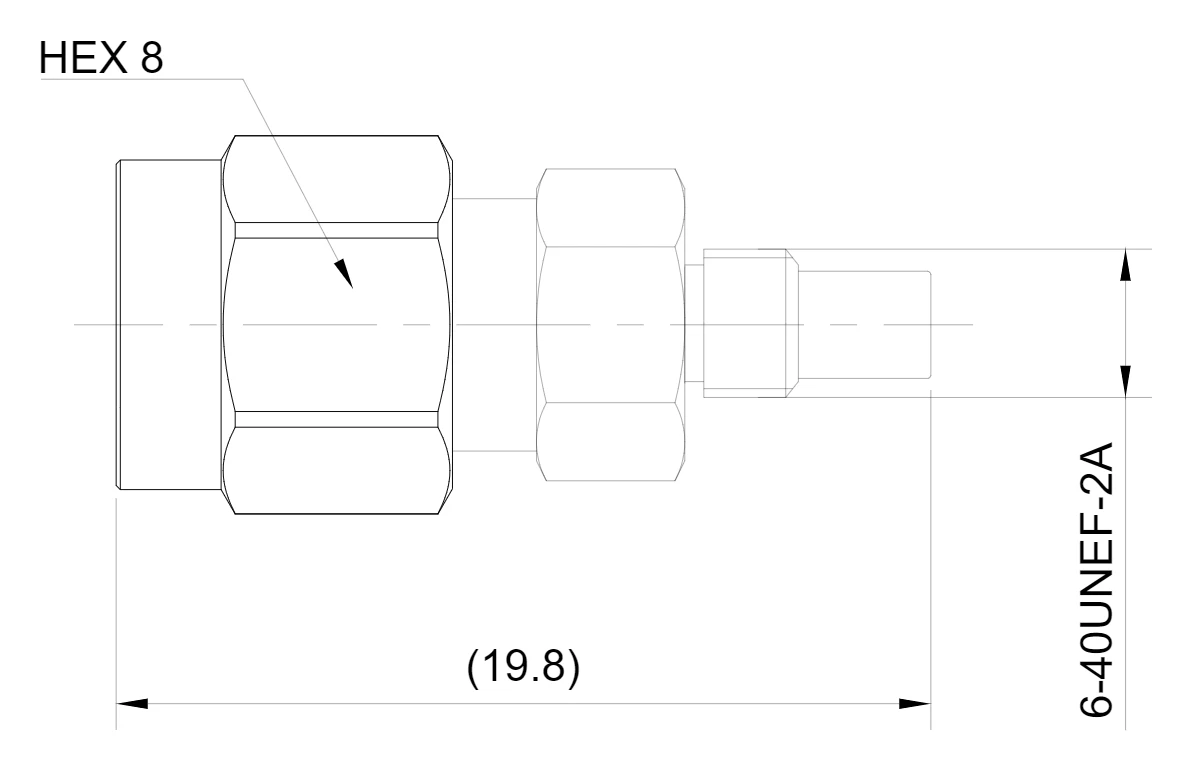

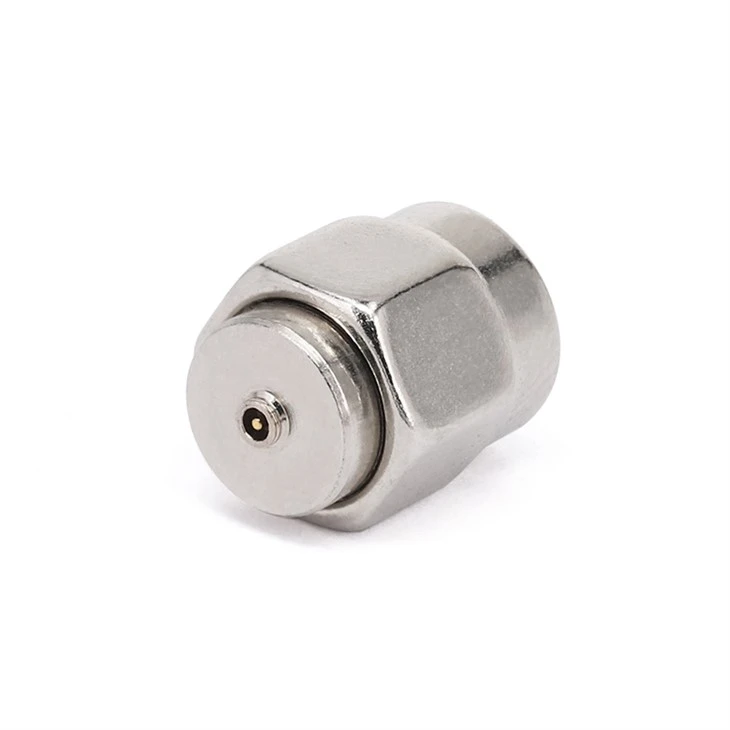

Fr 1- sma/ipx 1- jj |
|
|
Dc -6 GHz |
1.35 |
Sma gason ipx1 gason |
|
Fr 1- sma/ipx 1- kks |
|
|
Dc -6 GHz |
1.20 |
Sma gason ipx1 fi |
|
Fr 1- sma/ipx 4- jj |
|
|
Dc -6 GHz |
1.35 |

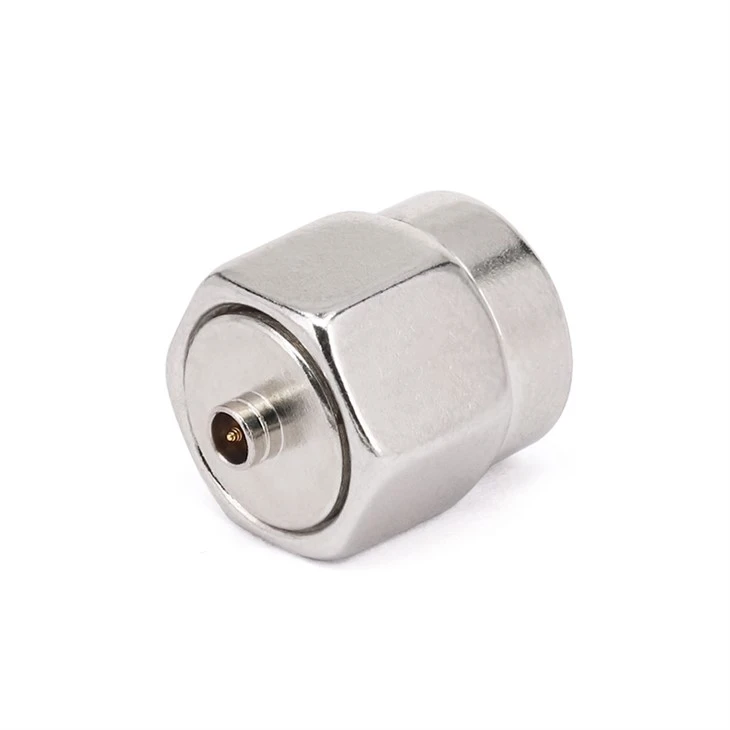

Sma gason nan ipx4 gason |
