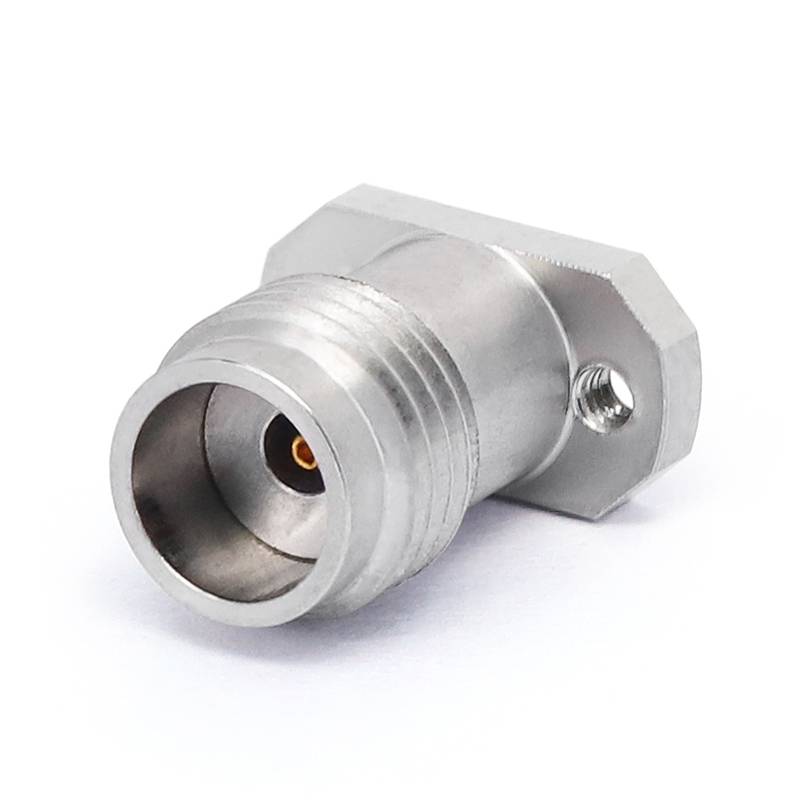

Jaden konektè entèrchanjabl
RF jaden entèrchèk konektè kowaksyal yo se eleman enpòtan nan sistèm RF . yo ki fèt espesyalman pou sou-sou sit enstalasyon ak ranplasman . Pa gen okenn bezwen pou soudaj; Yo ka fiks ak vis, ki senplifye pwosesis la antretyen . Menm nan kondisyon piman bouk, sa yo konektè ka konsiderableman kenbe entegrite siyal .
Dekri teren
Pwodwi Entwodiksyon
RF jaden entèrchèk konektè kowaksyal yo se eleman enpòtan nan sistèm RF . yo ki fèt espesyalman pou sou-sou sit enstalasyon ak ranplasman . Pa gen okenn bezwen pou soudaj; Yo ka fiks ak vis, ki senplifye pwosesis la antretyen . Menm nan kondisyon piman bouk, sa yo konektè ka konsiderableman kenbe entegrite siyal . nan sikui RF yo, yo pèmèt ranplasman rapid nan konpozan ki domaje {{5}. Fasil yo opere, diminye konpleksite nan enstalasyon .
An jeneral, RF jaden entèrchanjabl konektè kowaksyal amelyore fleksibilite a ak fyab nan sistèm lan epi redwi alontèm depans antretyen . Kalite yo pò Connector gen ladan divès opsyon tankou SMA, 2 . 92mm, 2 . 4mm, 1.85mm, 1.0mm, GOM, GOMS, GOM, GOMS, GOMS, GOMS, GOMS, GOMS, GOMS, GOMS, GOMS,. 110GHz.
Pwodwi kò style

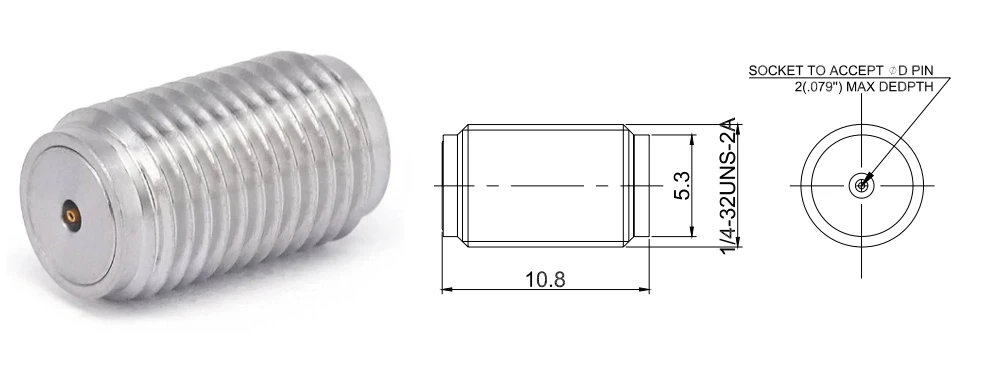

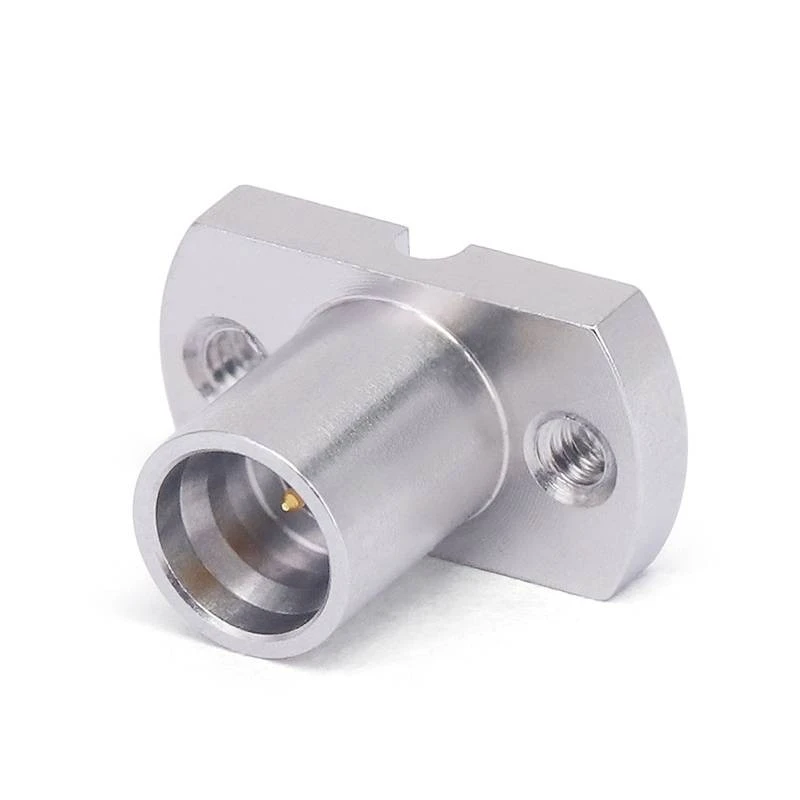

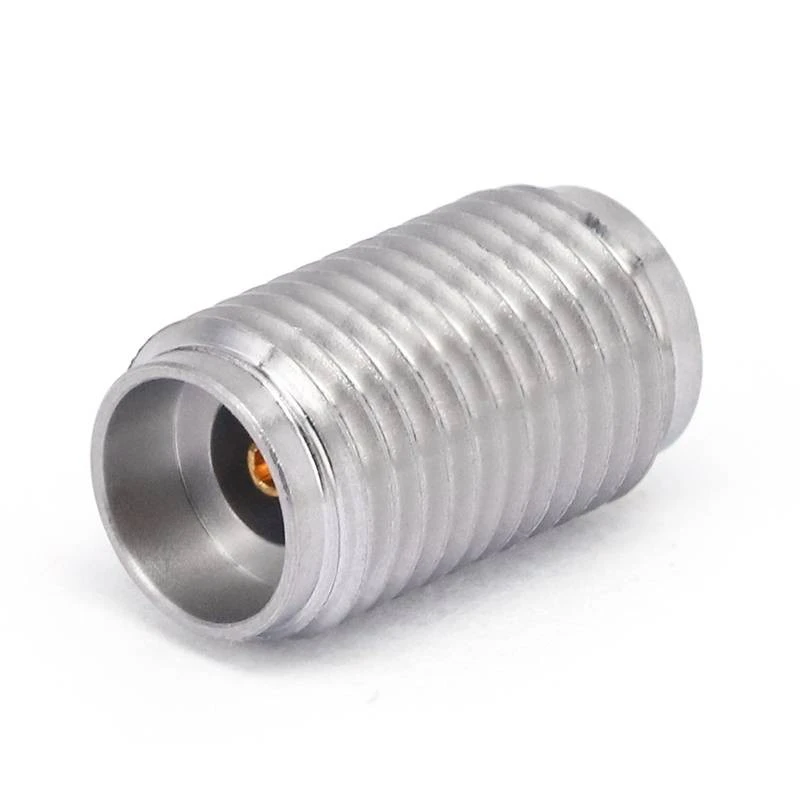

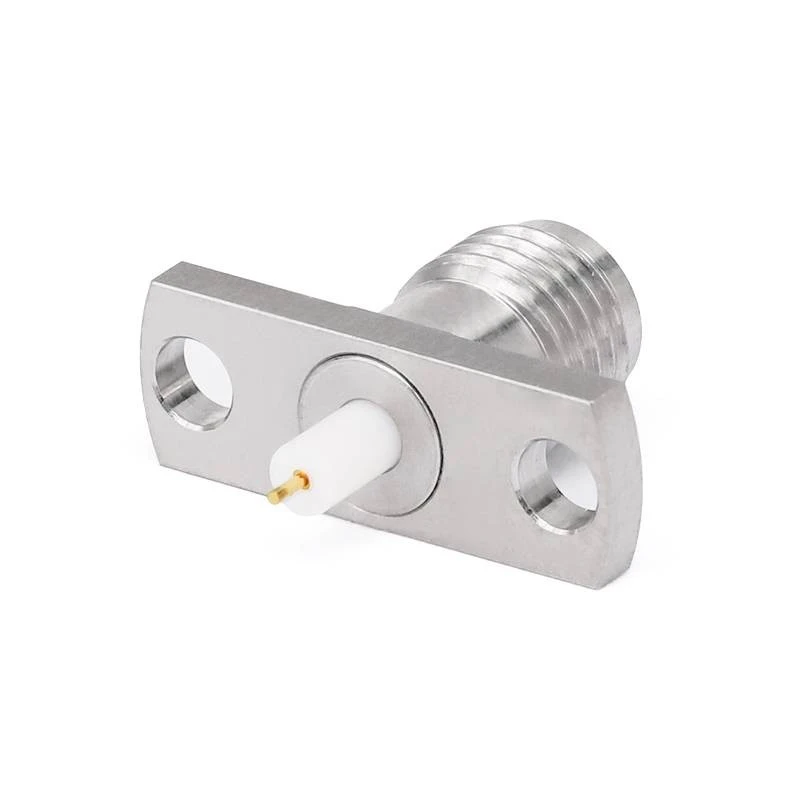

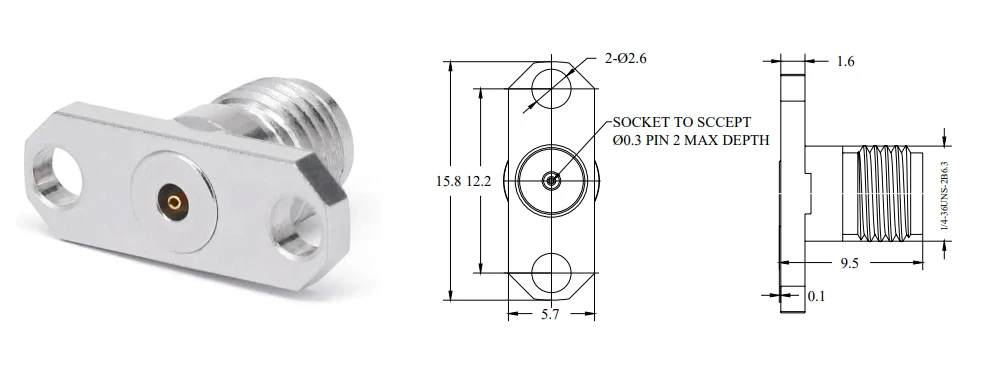

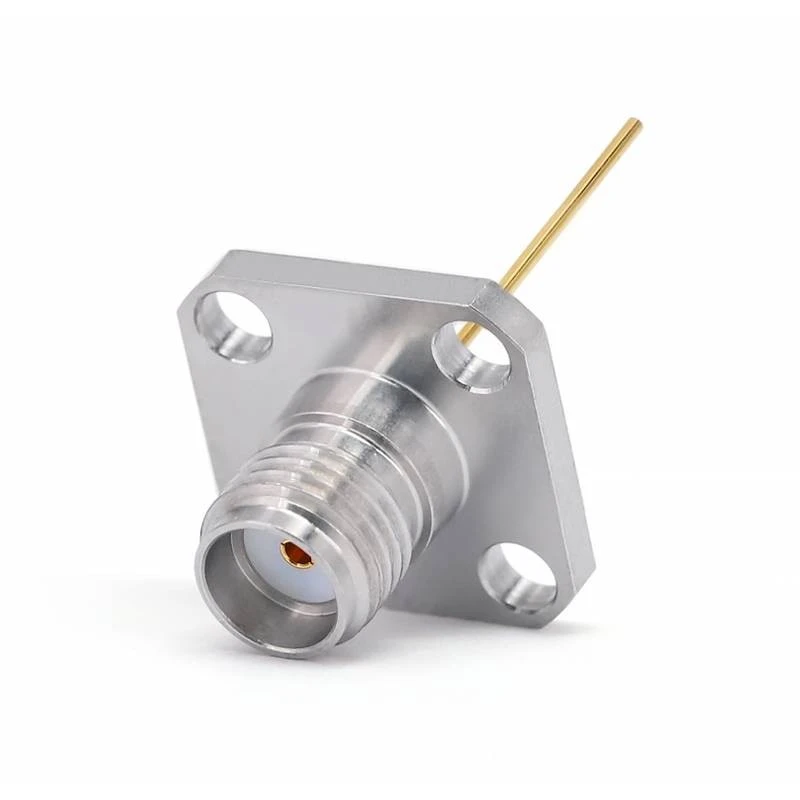

Konektè kowaksyal ki ka ranplase jaden yo gen kat kalite fòm kò, tankou dwat, 4 bride twou, konplètman Threaded kalite entegre, 2hole bride {{2}
Aplikasyon pwodwi
RF jaden entèrchèk konektè kowaksyal yo te itilize konekte sikui yo RF nan antèn, modil RF, filtè, aparèy navigasyon, sistèm rada, elatriye . yo ka fè fas a kondisyon move tan ak anviwònman elektwomayik konplèks .
FAQ akizisyon
Pwodwi done spesifikasyon
|
Konfigirasyon |
|
|
Kalite Connector |
SMA/2.92mm/2.4mm/1.85mm/GPO |
|
Connector enpedans |
50 om |
|
Connector polarite |
Estanda |
|
Connector Mount Metòd |
Dwat/ 2 bride twou/ 4 bride twou |
|
Metòd atachman |
Kontak |
|
Enfòmasyon sou materyèl yo |
|
|
Sant Kontak |
Kib lò plake |
|
Kontak ekstèn |
Asye pur |
|
Kò |
Asye pur |
|
Dielèktrik |
Pei/ptfe |
|
Done anviwònman |
|
|
Range Tanperati |
-55 degre nan +165 degre |
|
2011/65/Inyon Ewopeyen (ROHS) |
Konfòme |
Kalite pwodwi

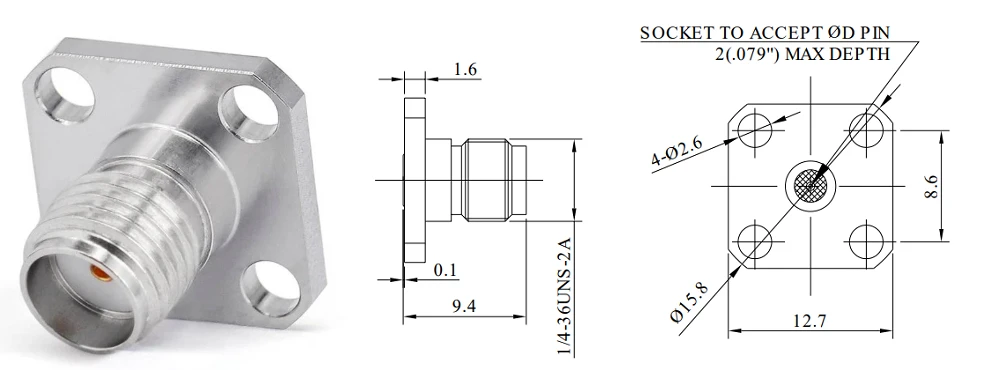

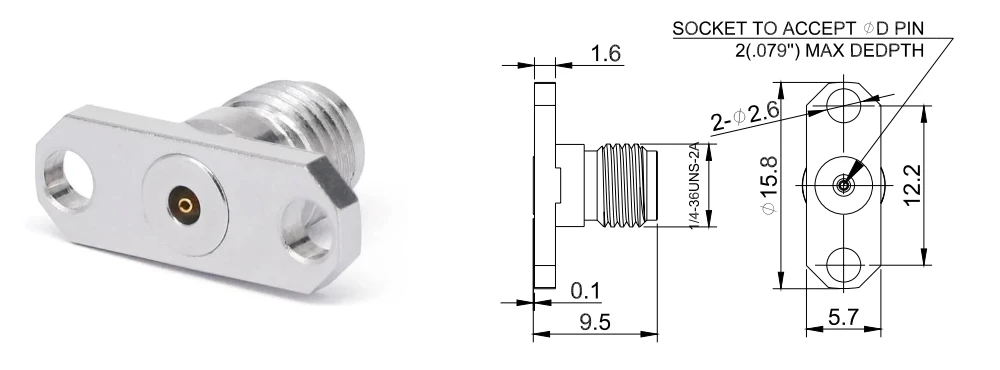

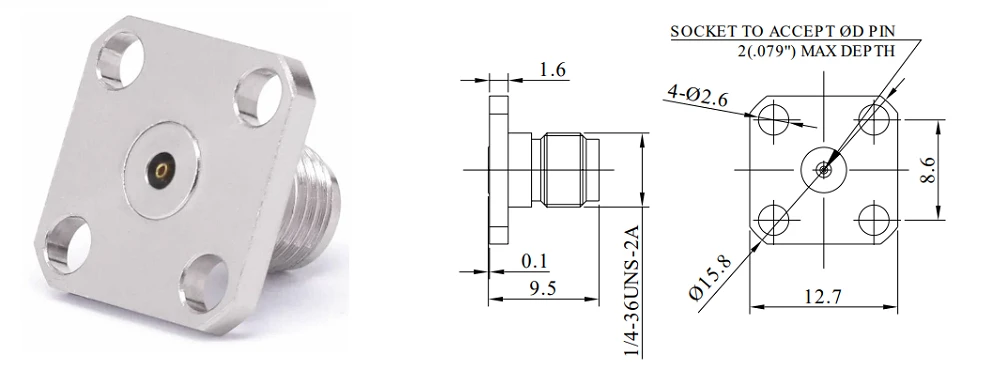

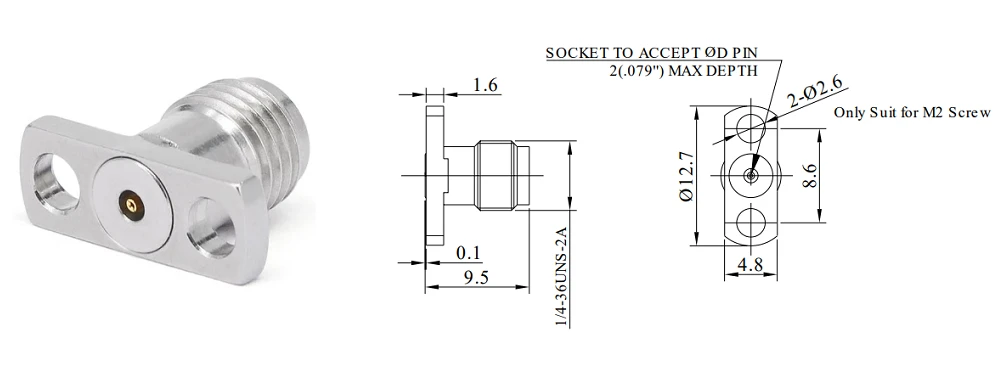

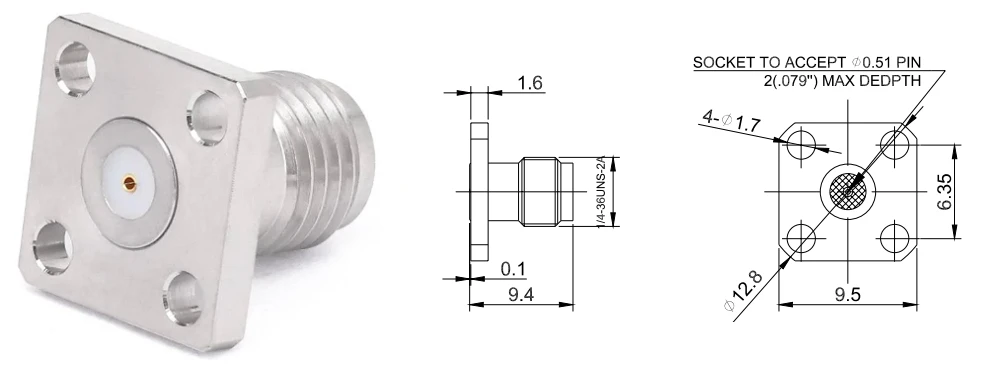

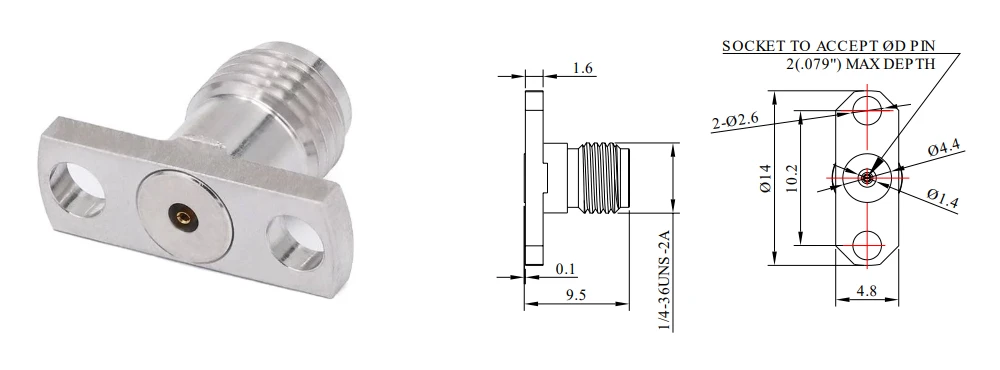

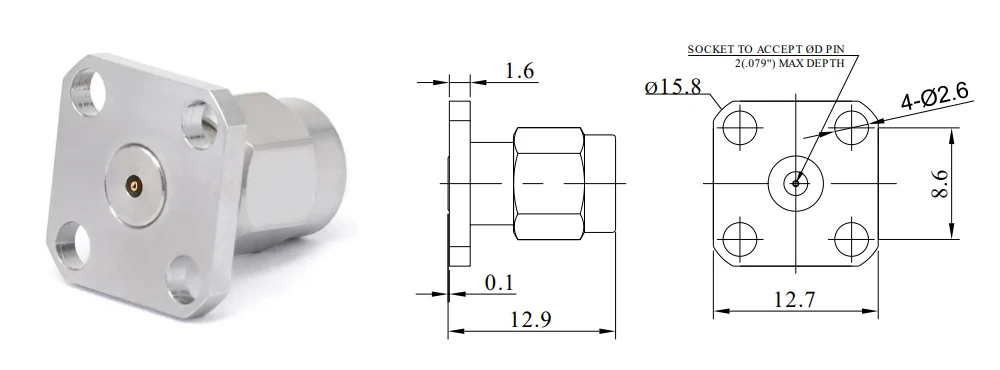

| SMA Field entèrchanjabl konektè |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kfd0151 |
Dc - 26.5 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kFD0138 |
Dc - 26.5 GHz |
1.15 |
0.38mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kfd0151 |
Dc - 26.5 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kFD0138 |
Dc - 26.5 GHz |
1.15 |
0.38mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- Sma-KFD0130 |
Dc - 26.5 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- SMA-KFD0230 |
Dc - 26.5 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kfd0251 |
Dc - 26.5 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- Sma-KFD0430 |
Dc - 26.5 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kfd0451 |
Dc - 26.5 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kFD0438 |
Dc - 26.5 GHz |
1.15 |
0.38mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kfd0751 |
Dc - 26.5 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- Sma-KFD0730 |
Dc - 26.5 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2- sma-kfd0751 |
Dc - 26.5 GHz |
1.15 |
0.51mm |

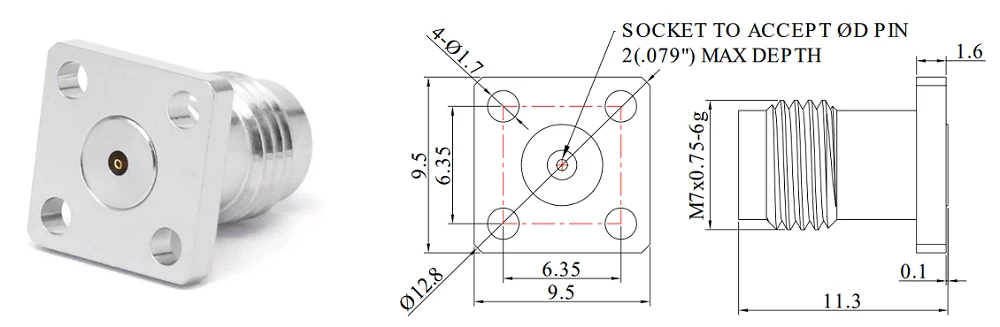

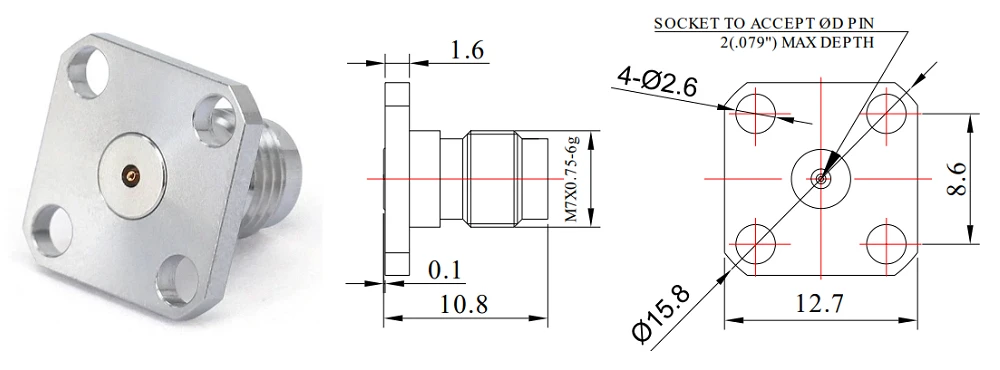

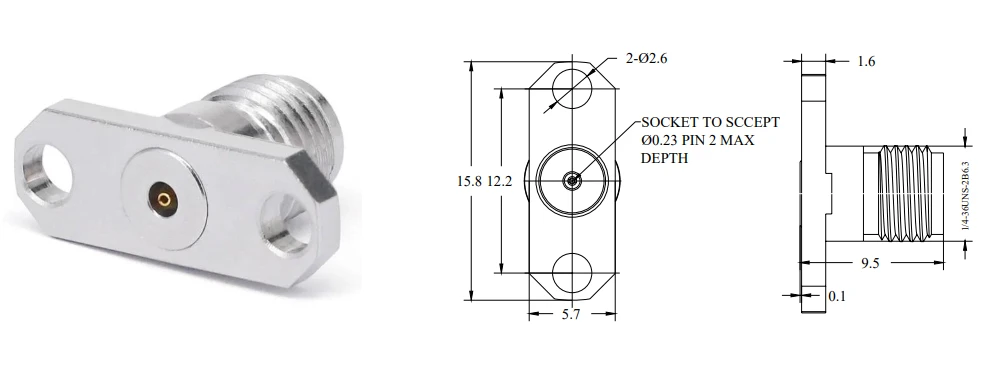

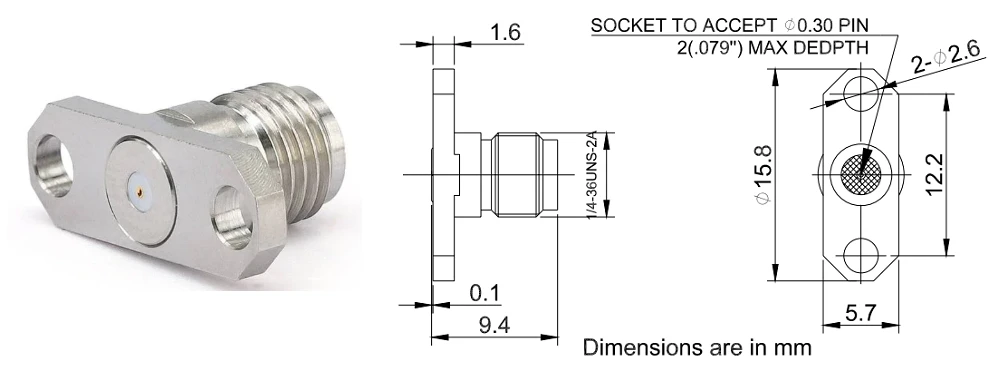

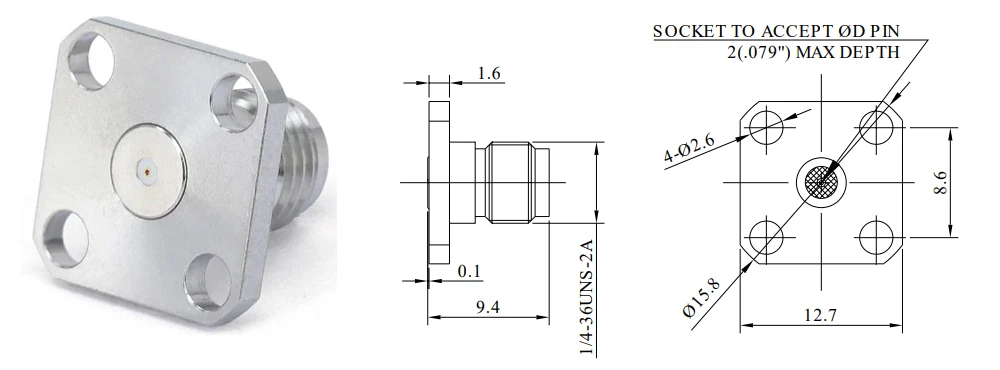

| 2.92mm jaden konektè entèrchanjabl |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0130 |
Dc - 40 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0151 |
Dc - 40 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- JFD0130 |
Dc - 40 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0451 |
Dc - 40 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0423 |
Dc - 40 GHz |
1.15 |
0.23mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0430 |
Dc - 40 GHz |
1.15 |
0.30mm |
| 2.92mm jaden konektè entèrchanjabl |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0423 |
Dc - 40 GHz |
1.15 |
0.23mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0523 |
Dc - 40 GHz |
1.15 |
0.23mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0530 |
Dc - 40 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0551 |
Dc - 40 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0538 |
Dc - 40 GHz |
1.15 |
0.38mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- KFD0730 |
Dc - 40 GHz |
1.15 |
0.30mm |
| 2.92mm jaden konektè entèrchanjabl |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- kyd0251 |
Dc - 40 GHz |
1.15 |
0.51mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.92- kyd0251 |
Dc - 40 GHz |
1.15 |
0.51mm |

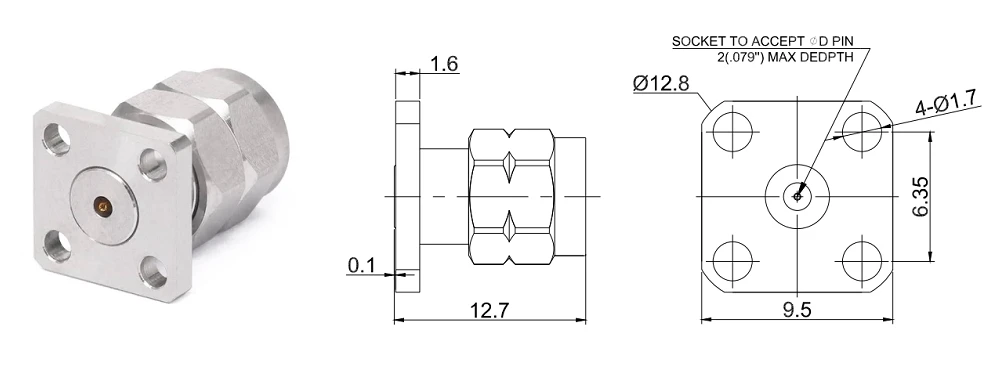

| 2.4mm jaden konektè entèrchanjabl |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.4- KFD0130 |
Dc - 50 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.4- JFD0230 |
Dc - 50 GHz |
1.15 |
0.30mm |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-2.4- JFD0130 |
Dc - 50 GHz |
1.15 |
0.30mm |
| 1.85mm jaden konektè entèrchanjabl |
|
Sku |
Abitid |
VSWR |
Koresponn ak PIN |
|
Fr 2-1.85- KFD0230 |
Dc - 67 GHz |
1.25 |
0.30mm |
