Cables Tès Objektif Jeneral
Kabl tès jeneral yo lajman itilize pwodwi kab nan jaden tankou tès elektwonik, ak karakteristik miltip satisfè kondisyon l 'divès. An tèm de konektè, kab sa a ofri divès kalite konektè, ki gen ladan 1.85mm, 2.4mm, 2.92mm, SMA, G3PO, ak GPPO. Tout konektè gen yon enpedans nan 50 om ak yon polarite estanda.
Dekri teren
Cables Tès Objektif Jeneral

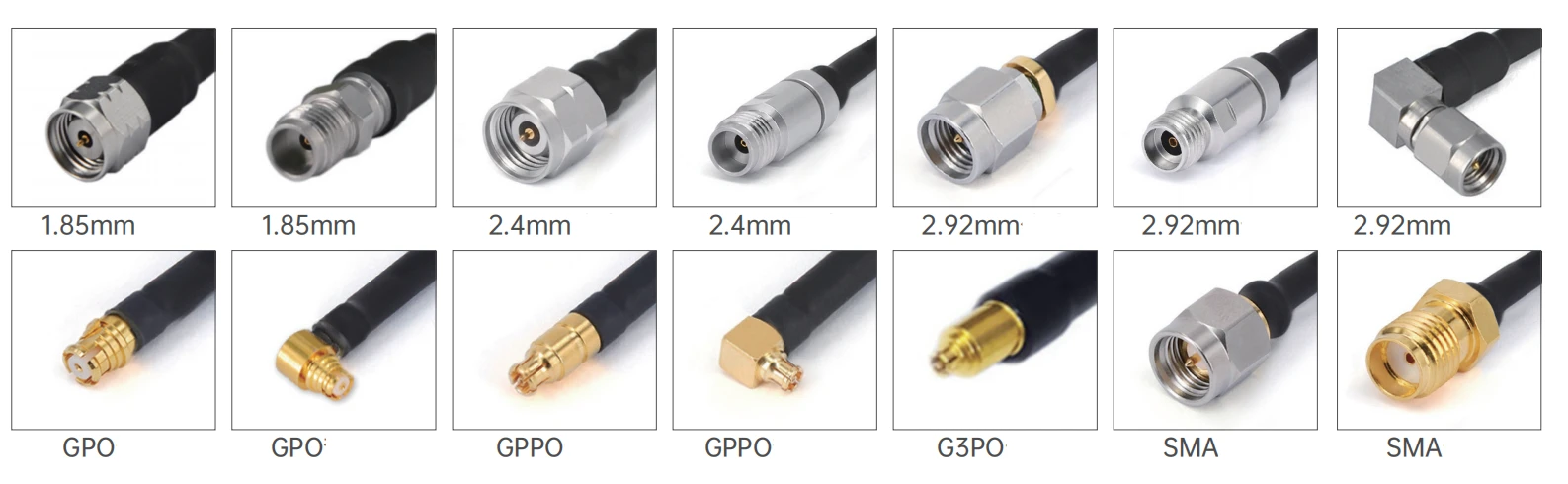

Kabl tès jeneral yo lajman itilize pwodwi kab nan jaden tankou tès elektwonik, ak karakteristik miltip satisfè kondisyon l 'divès. An tèm de konektè, kab sa a ofri divès kalite konektè, ki gen ladan 1.85mm, 2.4mm, 2.92mm, SMA, G3PO, ak GPPO. Tout konektè gen yon enpedans nan 50 om ak yon polarite estanda. Anplis, konektè yo gen plizyè metòd enstalasyon, ki gen ladan dwat ak dwa - kalite ang, ki ka fleksibl adapte a interfaces aparèy diferan.
Pwodwi Entwodiksyon
An tèm de seleksyon materyèl, kontak santral la, kontak ekstèn, ak kò prensipal yo te fè nan materyèl tankou kwiv plake ak lò, kwiv beryllium plake ak lò, oswa passivated asye pur, ki gen bon konduktiviti elektrik ak rezistans korozyon. Se dielèktrik la te fè nan PEI oswa materyèl PTFE asire pèfòmans siyal transmisyon. Kondiktè santral la nan kab la se ajan - plake kwiv - asye rekouvèr, kouch nan izolasyon se PTFE solid, se kouch nan pwoteksyon ki konpoze de ajan - plake tep kwiv ak fil kwiv, epi li se djenn lan te fè nan materyèl FEP. Sa a pa sèlman efektivman gwo plak pwotèj entèfere siyal, men tou gen sèten fòs mekanik ak rezistans anviwònman an.
Aplikasyon pwodwi
During the research, development, production, and testing of communication base stations, mobile phones, satellite communication equipment, etc., general - purpose test cables are required to connect various testing instruments to communication devices to ensure stable signal transmission, so as to accurately test various performance indicators of the equipment, such as signal strength, frequency characteristics, transmission rate, etc. For example, in the construction of 5G base stations, this kind of cable is used to connect signal generators, spectrum Analizè yo, ak lòt ekipman yo egzakteman teste pèfòmans radyo a - frekans nan estasyon baz yo, asire ke estasyon baz yo ka bay sèvis kominikasyon ki estab ak efikas.
Nòt enpòtan
1. Pou asanble kab longè koutim, tanpri pa bliye kite enfòmasyon longè ou sou paj kesye a;
2. Tout asanble kab yo ka bay ak faz-matche pè oswa gwoup; Si ou bezwen câbles yo dwe faz matche, tanpri voye imèl nou: sales@flexirf.com
Pwodwi done spesifikasyon
|
Konfigirasyon |
|
|
Connector 1 Kalite |
1.85mm\/2.4mm\/2.92mm\/SMA\/G3PO\/GPPO\/N |
|
Connector 1 enpedans |
50 om |
|
Connector 1 polarite |
Estanda |
|
Connector 2 kalite |
1.85mm\/2.4mm\/2.92mm\/SMA\/G3PO\/GPPO\/N |
|
Connector 2 enpedans |
50 om |
|
Connector 2 polarite |
Estanda |
|
Connector Mount Metòd |
Okenn |
|
Connector style kò |
Ang dwat ak dwa |
|
Enfòmasyon sou materyèl yo |
|
|
Sant kontak |
Kwiv lò plake, berilyòm lò kwiv plake |
|
Kontak ekstèn |
Kwiv lò plake, berilyòm lò kwiv plake, asye pur pasivated |
|
Kò |
Kwiv lò plake, berilyòm lò kwiv, asye pur pasivated |
|
Dielèktrik |
Pei\/ptfe |
|
Done anviwònman |
|
|
Range Tanperati |
-40 degre nan +165 degre |
|
2011\/65\/Inyon Ewopeyen (ROHS) |
Konfòme |
|
Espesifikasyon kab |
|
|
Sant kondiktè |
Ajan plake copperweld |
|
Dielèktrik |
Solid PTFE |
|
De pwoteksyon |
Bann kwiv ajan-plake ak fil |
|
Levit |
Fep |
|
Kapasite (PF\/M) |
95.1 |
|
Vitès nan pwopagasyon (%) |
70 |
|
Pwoteksyon efikasite |
<-100dB @ 1GHz |
|
Pouvwa manyen |
1 0 watt @ 18ghz nan nivo lanmè, vswr1.0 |
Kalite pwodwi
| GAF71\/RG405SS 405 Seri Fleksib Kab Asanble | ||||
 |
Estrikti Dyamèt Materyèl (mm) |
|||
|
1 |
Kondiktè enteryè |
Silver-plake kwiv-rekouvèr asye |
0.51±0.05 |
|
|
2 |
Ensilatè |
Solid PTFE |
1.63±0.05 |
|
|
3 |
Anndan pwoteksyon |
Bann kwiv ajan-plake |
1.80±0.05 |
|
|
4 |
Eksteryè pwoteksyon |
Ajan-plake kwiv fil kwiv trese |
2.18±0.05 |
|
|
5 |
levit |
Fep |
2.54±0.1 |
|
| Atenuasyon, pouvwa (kondisyon tès nan nivo lanmè 20 degre) | |||||||
|
Frekans (GHz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
Atenuasyon (db\/m) |
0.75 |
1.29 |
1.71 |
2.56 |
3.22 |
3.57 |
3.80 |
|
Atenuasyon (db\/ft) |
0.229 |
0.393 |
0.521 |
0.780 |
0.981 |
1.008 |
1.115 |
|
Modèl komen ak endikatè teknik
|
|||||
|
Pòtre |
Sku |
Connector 1 |
Connector 2 |
frekans |
Retounen Pèt\/VSWR |
 |

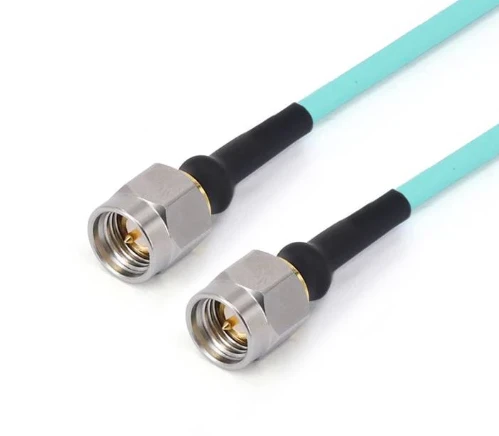

Frf 71- smmmmm-xxx |
Sma gason |
Sma gason |
Dc -26. 5GHz |
1.30 |
 |

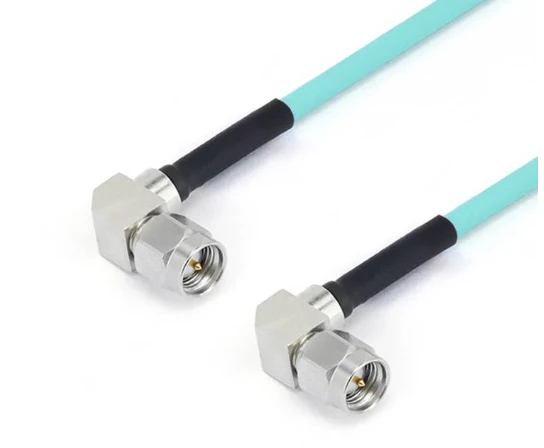

FRF 71- smwmsmwm-xxx -18 g |
Sma gason ak ang dwat |
Sma gason ak ang dwat |
Dc -18 GHz |
1.30 |
 |

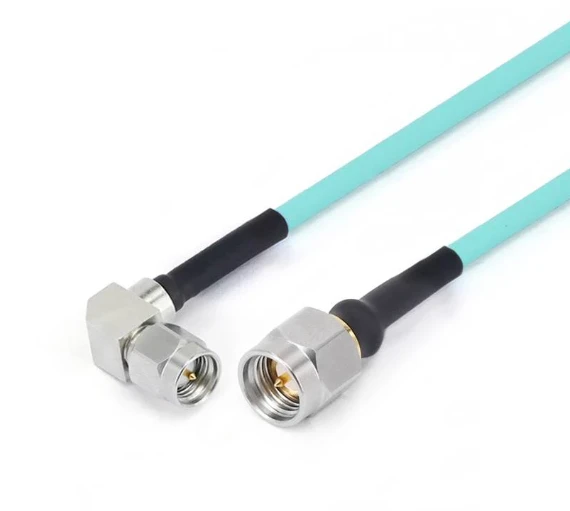

FRF 71- SMMSMWM-XXX -18 G |
Sma gason |
Sma gason ak ang dwat |
Dc -18 GHz |
1.30 |
 |
Frf 71- smmgpf-xxx |
Sma gason |
GPO (SMP) Fi |
Dc -26. 5GHz |
1.35 |
 |
Frf 71- smmgpwf-xxx |
Sma gason |
GPO (SMP) Fi ak ang dwat |
Dc -26. 5GHz |
1.35 |
 |
Frf 71- smfgpf-xxx |
Sma fi |
GPO (SMP) Fi |
Dc -26. 5GHz |
1.35 |
 |
Frf 71- smffgpf-xxx |
Sma fi ak 4 bride twou |
GPO (SMP) Fi |
Dc -26. 5GHz |
1.35 |
 |
Frf 71- smmgppf-xxx |
Sma gason |
GPPO (Mini-SMP) Fi |
Dc -26. 5GHz |
14DB |
 |
Frf 71- smmgppwf-xxx |
Sma gason |
Gppo fi ak ang dwat |
Dc -26. 5GHz |
14DB |
 |
FRF 71- smwmgppf-xxx -18 g |
Sma gason ak ang dwat |
GPPO (Mini-SMP) Fi |
Dc -18 GHz |
15db |
 |
FRF 71- smwmgppwf-xxx -18 g |
Sma gason ak ang dwat |
Gppo fi ak ang dwat |
Dc -18 GHz |
15db |
 |
Frf 71- smfgppf-xxx |
Sma fi |
GPPO (Mini-SMP) Fi |
Dc -26. 5GHz |
14DB |
 |
Frf 71- smffgppf-xxx |
Sma fi ak 4 bride twou |
GPPO (Mini-SMP) Fi |
Dc -26. 5GHz |
14DB |
 |
FRF 71-292 M292M-XXX |
2.92mm gason |
2.92mm gason |
Dc -40 GHz |
1.35 |
 |
Frf 71-292 Mgpf-xxx |
2.92mm gason |
GPO (SMP) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 Mgpwf-xxx |
2.92mm gason |
GPO (SMP) Fi ak ang dwat |
Dc -40 GHz |
12DB |
 |
Frf 71-292 fgpf-xxx |
2.92mm fi |
GPO (SMP) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 ffgpf-xxx |
2.92mm fi ak 4 bride twou |
GPO (SMP) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 Mgppf-xxx |
2.92mm gason |
GPPO (Mini-SMP) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 fgppf-xxx |
2.92mm fi |
GPPO (Mini-SMP) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 ffgppf-xxx |
2.92mm fi ak 4 bride twou |
GPPO (Mini-SMP) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 Mgppwf-xxx |
2.92mm gason |
GPPO (mini-SMP) fi ak ang dwat |
Dc -40 GHz |
12DB |
 |
Frf 71-292 Mg3pf-xxx |
2.92mm gason |
G3PO (SMPS) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 fg3pf-xxx |
2.92mm fi |
G3PO (SMPS) Fi |
Dc -40 GHz |
14DB |
 |
Frf 71-292 ffg3pf-xxx |
2.92mm fi ak 4 bride twou |
G3PO (SMPS) Fi |
Dc -40 GHz |
14DB |
 |
FRF 71-24 M24M-XXX |
2.4mm gason |
2.4mm gason |
Dc -50 GHz |
14DB |
 |
Frf 71-24 fgpf-xxx |
2.4mm fi |
GPO (SMP) Fi |
Dc -40 GHz |
12DB |
 |
Frf 71-24 ffgpf -100 |
2.4mm fi ak 4 bride twou |
GPO (SMP) Fi |
Dc -40 GHz |
12DB |
 |
Frf 71-24 Mgpwf-xxx |
2.4mm gason |
GPO (SMP) Fi ak ang dwat |
Dc -40 GHz |
10dB |
 |
Frf 71-24 Mgppf-xxx |
2.4mm gason |
GPPO (Mini-SMP) Fi |
Dc -40 GHz |
12DB |
 |
Frf 71-24 Mgppwf-xxx |
2.4mm gason |
GPPO (mini-SMP) fi ak ang dwat |
Dc -40 GHz |
10dB |
 |
Frf 71-24 fgppf-xxx |
2.4mm fi |
GPPO (Mini-SMP) Fi |
Dc -40 GHz |
12DB |
 |
Frf 71-24 ffgppf-xxx |
2.4mm fi ak 4 bride twou |
GPPO (Mini-SMP) Fi |
Dc -40 GHz |
12DB |
 |
Frf 71-185 Mg3pf-xxx |
1.85mm gason |
G3PO (SMPS) Fi |
Dc - 67 GHz |
10dB |
 |
Frf 71-185 fg3pf-xxx |
1.85mm fi |
G3PO (SMPS) Fi |
Dc - 67 GHz |
10dB |
 |
Frf 71-185 ffg3pf-xxx |
1.85mm ak 4 bride twou |
G3PO (SMPS) Fi |
Dc - 67 GHz |
10dB |
|

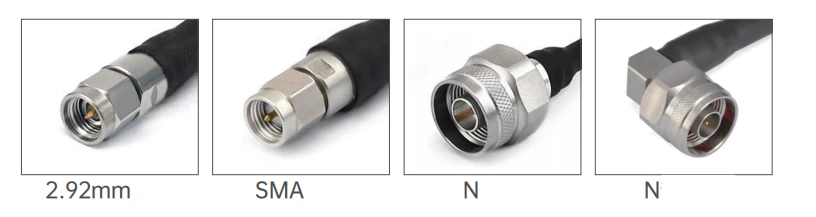

GAF72\/RG402SS 402 Seri Fleksib Kab Asanble |
||||||
|
Estrikti Dyamèt Materyèl (mm) |
||||||
 |
1 |
Kondiktè enteryè |
Silver-plake kwiv-rekouvèr asye |
0.92±0.05 |
||
|
2 |
Ensilatè |
Solid PTFE |
2.97±0.05 |
|||
|
3 |
Anndan pwoteksyon |
Bann kwiv ajan-plake |
3.25±0.05 |
|||
|
4 |
Eksteryè pwoteksyon |
Ajan-plake kwiv fil kwiv trese |
3.58±0.1 |
|||
|
5 |
levit |
Fep |
4.12±0.13 |
|||
| Atenuasyon, pouvwa (kondisyon tès nan nivo lanmè 20 degre) | |||||||
|
Frekans (GHz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
Atenuasyon (db\/m) |
0.41 |
0.74 |
0.98 |
1.47 |
1.87 |
2.10 |
2.24 |
|
Atenuasyon (db\/ft) |
0.125 |
0.226 |
0.299 |
0.448 |
0.570 |
0.640 |
0.683 |
|
Modèl komen ak endikatè teknik
|
|||||
|
Pòtre |
Sku |
Connector 1 |
Connector 2 |
frekans |
Retounen Pèt\/VSWR |
|
|
Frf 72- smmmmm-xxx |
Sma gason |
Sma gason |
Dc -26. 5GHz |
1.30 |
|
|

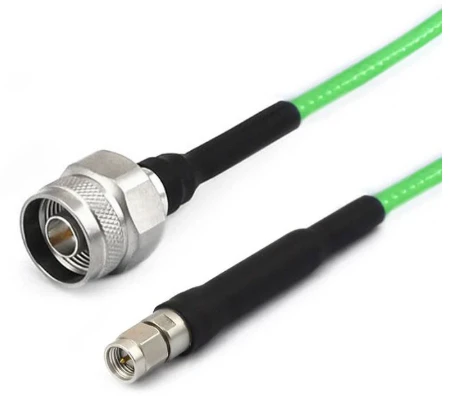

Frf 72- nmsmm-xxx |
N gason |
Sma gason |
Dc -18 GHz |
1.25 |
|
|

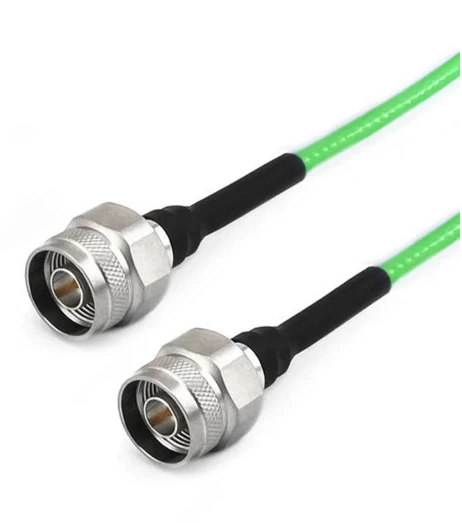

Frf 72- nmnm-xxx |
N gason |
N gason |
Dc -18 GHz |
1.25 |
