Asanble Kab Kab men semi-fleksib coax se yon pèfòmans-wo semi-fleksib asanble kab kowaksyal ki jwe yon wòl enpòtan anpil nan jaden miltip . pwodui sa a se fabrike pa yon ekip pwofesyonèl . ak { 047 ", 086", ak 141 ".
Dekri teren
Asanble Kab Kab men semi-fleksib se yon pèfòmans-wo semi-fleksib asanble kab kowaksyal ki jwe yon wòl enpòtan anpil nan jaden miltip . pwodui sa a se fabrike pa yon ekip pwofesyonèl . ak { 047 ", 086", ak 141 ".

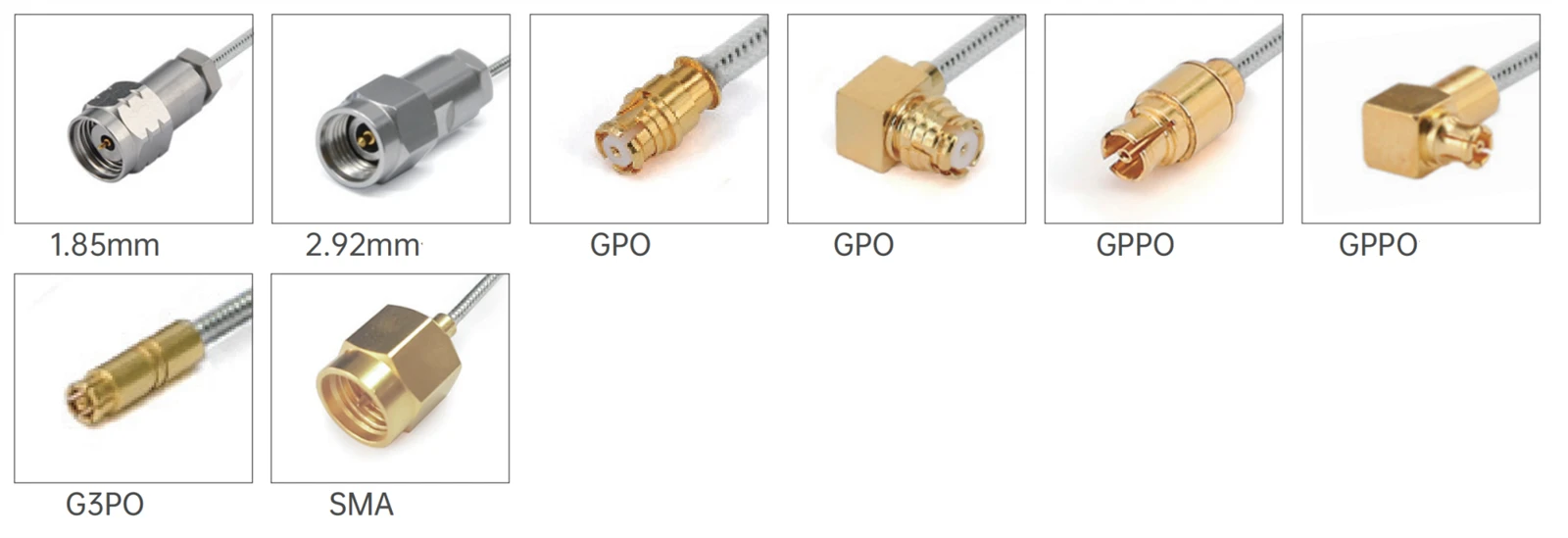

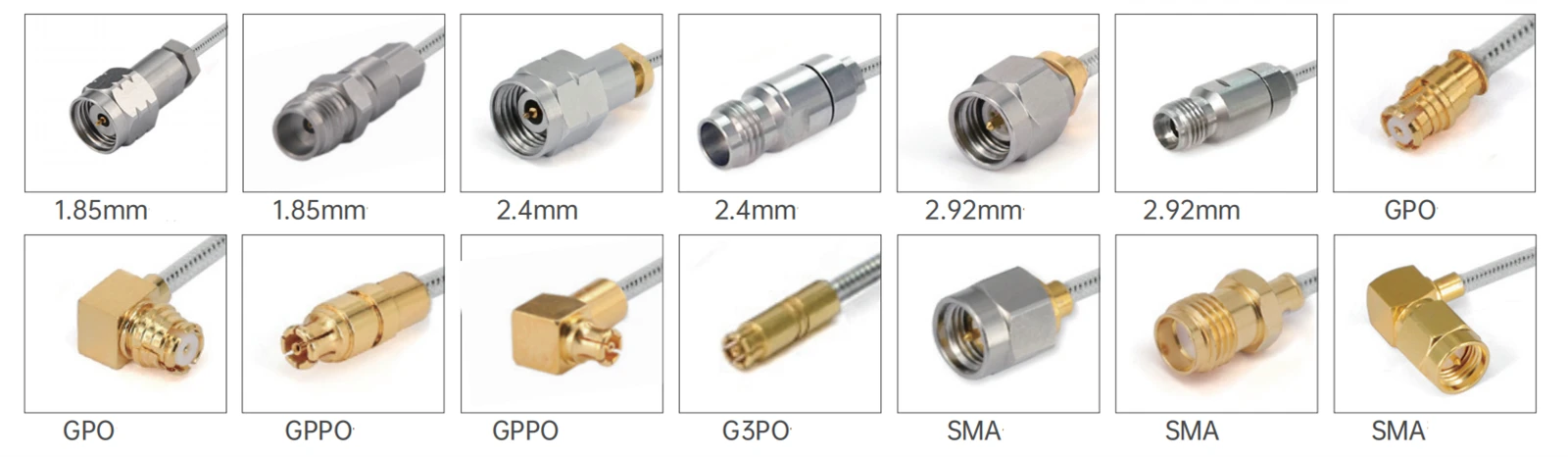

Anplis de sa, pwodwi a ofri opsyon miltip an tèm de kalite Connector, enpedans, polarite, monte metòd, kontak ak materyèl lojman . Kalite yo Connector gen ladan 1 . 85mm, 2 . 4mm, 2 {{8} 92mm, Smak, G. Enpedans la se 50 om, ak polarite a se estanda. Gen divès metòd aliye, ak kontak yo ak kay yo te fè nan materyèl tankou kwiv plake ak lò, kwiv beryllium plake ak lò, ak passivated asye pur asire bon konduktiviti elektrik ak rezistans korozyon.
Pwodwi Entwodiksyon
Gen seri tankou FR701 & FR702/zantray -047- Fòm 047 "seri a ak FR711 & FR712/zantray -085- fòm 086" seri . pwodwi ki soti nan diferan seri a varye nan dimansyon estriktirèl ak pèfòmans elektrik {{9} FR702/zantray -047- Fòm 047 "Seri se 0 . 29 ± 0 . 0127mm, pandan ke sa yo ki an FR711 & FR712/zantray -085- Seri 086" Korespondan atenuasyon ak done pouvwa yo bay pou frekans diferan. Genyen tou plizyè modèl komen ak endikatè teknik ki disponib pou satisfè kondisyon yo nan senaryo aplikasyon diferan.
An tèm de pèfòmans elektrik, kondiktè nan sant se ajan-plake kwiv-rekouvèr asye, konbine avèk yon solid insulator PTFE ak yon fil kwiv copper kondiktè . li prezante kapasite ki ba (95.1pf/m), gwo vitès pwopagasyon (70%), ak ekselan efikasite pwoteksyon (efikasite ekselan (< -100dB @ 1GHz). It has a strong power handling capacity. For example, it can reach 10 watts under the conditions of 18GHz, sea level, and VSWR1.0. The operating temperature range is from -40°C to +165°C, and it complies with the 2011/65/EU (RoHS) standard, being environmentally friendly and adaptable to various environments.
Aplikasyon pwodwi
Akòz karakteristik li yo pou yo te bendable epi ki gen ekselan pèfòmans elektrik, li se lajman ki itilize nan jaden tankou kominikasyon, aparèy elektwonik, ak tès ak mezi . nan senaryo tankou sou - deteksyon sit nan rezo kominikasyon ak pwoblèm nan ekipman pou yo itilize yo ak CABLESSYE YEMI - FLEXIBLE YO YO YO POU KONSEYE YO YO YO YO ENSEKANS YO YO YO YO POU ENSEKANS YO YO YO YO YO POU ENSEKAN. Opere . Yo ka byen vit etabli lyen tès ant aparèy diferan, pèmèt efikas fini nan travay deteksyon .
Nòt enpòtan
1. Pou asanble kab longè koutim, tanpri pa bliye kite enfòmasyon longè ou sou paj kesye a;
2. Tout asanble kab yo ka bay ak faz-matche pè oswa gwoup; Si ou bezwen câbles yo dwe faz matche, tanpri voye imèl nou: sales@flexirf.com
Pwodwi done spesifikasyon
|
Konfigirasyon |
|
|
Connector 1 Kalite |
1.85mm/2.4mm/2.92mm/SMA/G3PO/GPPO |
|
Connector 1 enpedans |
50 om |
|
Connector 1 polarite |
Estanda |
|
Connector 2 kalite |
1.85mm/2.4mm/2.92mm/sma/g3po/gppo/ |
|
Connector 2 enpedans |
50 om |
|
Connector 2 polarite |
Estanda |
|
Connector Mount Metòd |
Okenn |
|
Connector style kò |
Ang dwat ak dwa |
|
Enfòmasyon sou materyèl yo |
|
|
Sant Kontak |
Kwiv lò plake, berilyòm lò kwiv plake |
|
Kontak ekstèn |
Kwiv lò plake, berilyòm lò kwiv plake, asye pur pasivated |
|
Kò |
Kwiv lò plake, berilyòm lò kwiv, asye pur pasivated |
|
Dielèktrik |
Pei/ptfe |
|
Done anviwònman |
|
|
Range Tanperati |
-40 degre nan +165 degre |
|
2011/65/Inyon Ewopeyen (ROHS) |
Konfòme |
|
Espesifikasyon kab |
|
|
Sant kondiktè |
Ajan plake copperweld |
|
Dielèktrik |
Solid PTFE |
|
Levit |
Okenn oswa fep |
|
Kapasite (PF/M) |
95.1 |
|
Vitès nan pwopagasyon (%) |
70 |
|
Pwoteksyon efikasite |
<-100dB @ 1GHz |
|
Pouvwa manyen |
10watt @ 18GHz nan nivo lanmè, vswr1.0 |
Kalite pwodwi
| FR701 & FR702/zantray -047- Fòm 047 "seri kab asanble | ||||
 |
Estrikti dyamèt materyèl (mm) |
|||
|
1 |
Kondiktè enteryè |
Silver-plake kwiv-rekouvèr asye |
0.29±0.0127 |
|
|
2 |
Ensilatè |
Solid PTFE |
0.94±0.0254 |
|
|
3 |
Kondiktè ekstèn |
Fil kwiv konsèv |
1.19±0.05 |
|
|
4 |
Levit |
Fep |
1.6±0.13 |
|
| Atenuasyon, pouvwa (kondisyon tès nan nivo lanmè 20 degre) | |||||
|
Frekans (GHz) |
0.5 |
1 |
5 |
10 |
20 |
|
Atenuasyon (db/m) |
0.787 |
1.112 |
2.585 |
3.734 |
5.443 |
|
Pouvwa (W) |
67.4 |
47.4 |
20.7 |
14.4 |
9.9 |
|
Modèl komen ak endikatè teknik
|
|||||
|
Pòtre |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Retounen Pèt/VSWR |
|
|
Fr 701-292 ff1g3pf-xxx |
2.92mm fi ak 2 bride twou |
G3PO (SMPS) Fi |
Dc -40 GHz |
12dB |
|
|
Fr 701-292 mg3pf-xxx |
2.92mm gason |
G3PO (SMPS) Fi |
Dc -40 GHz |
12dB |
|
|
Fr 701-292 fg3pf-xxx |
2.92mm fi |
G3PO (SMPS) Fi |
Dc -40 GHz |
12dB |
|
|
Fr 701-185 mg3pf-xxx |
1.85mm gason |
G3PO (SMPS) Fi |
Dc -67 GHz |
10dB |
|
|
Fr 701-185 fg3pf-xxx |
1.85mm fi |
G3PO (SMPS) Fi |
Dc -67 GHz |
10dB |
| FR711 & FR712/zantray -085- Fòm 086 "seri kab asanble | ||||
 |
Estrikti Dyamèt Materyèl (mm) |
|||
|
1 |
Kondiktè enteryè |
Ajan-plake kwiv-rekouvèr Stee |
0.51±0.0127 |
|
|
2 |
Ensilatè |
Solid PTFE |
1.69±0.0254 |
|
|
3 |
Kondiktè ekstèn |
Fil kwiv konsèv |
2.2±0.05 |
|
|
4 |
Levit |
Fep |
2.54 |
|
| Atenuasyon, pouvwa (kondisyon tès nan nivo lanmè 20 degre) | |||||
|
Frekans (GHz) |
0.4 |
1 |
5 |
10 |
18 |
|
Atenuasyon (db/m) |
0.43 |
0.70 |
1.72 |
2.49 |
3.46 |
|
Pouvwa (W) |
253 |
157 |
69 |
47 |
33 |
| Modèl komen ak endikatè teknik |
 |
|
FR712/zantray -085- fòm-FEP (ak fep levit) |
|||||
|
Pòtre |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Retounen Pèt/VSWR |
|
|
Fr 712- smmmmm-xxx |
Sma gason |
Sma gason |
Dc -26.5 GHz |
1.35 |
|
|

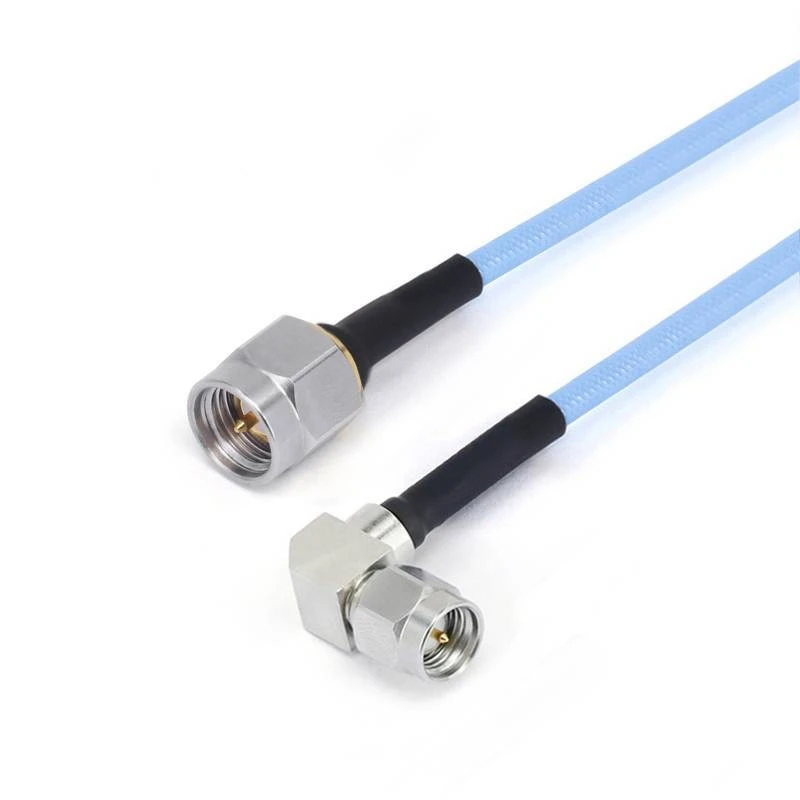

Fr 12- SMMSMWM-XXX -18 G |
Sma gason |
Sma gason ak ang dwat |
Dc -18 GHz |
1.35 |
|
|
Fr 712- smwmsmwm-xxx -18 g |
Sma gason ak ang dwat |
Sma gason ak ang dwat |
Dc -18 GHz |
1.40 |
|
|
Fr 712- smmgpf-xxx |
Sma gason |
GPO (SMP) Fi |
Dc -26.5 GHz |
1.35 |
|
|
Fr 712- smmgpwf-xxx |
Sma gason |
GPO (SMP) Fi ak ang dwat |
Dc -26.5 GHz |
1.40 |
|
|
Fr 712- smmgppf-xxx |
Sma gason |
GPPO (Mini-SMP) Fi |
Dc -26.5 GHz |
1.35 |
|
|
Fr 712- smmgppwf-xxx |
Sma gason |
GPPO (mini-SMP) fi ak ang dwat |
Dc -26.5 GHz |
1.40 |
|
|

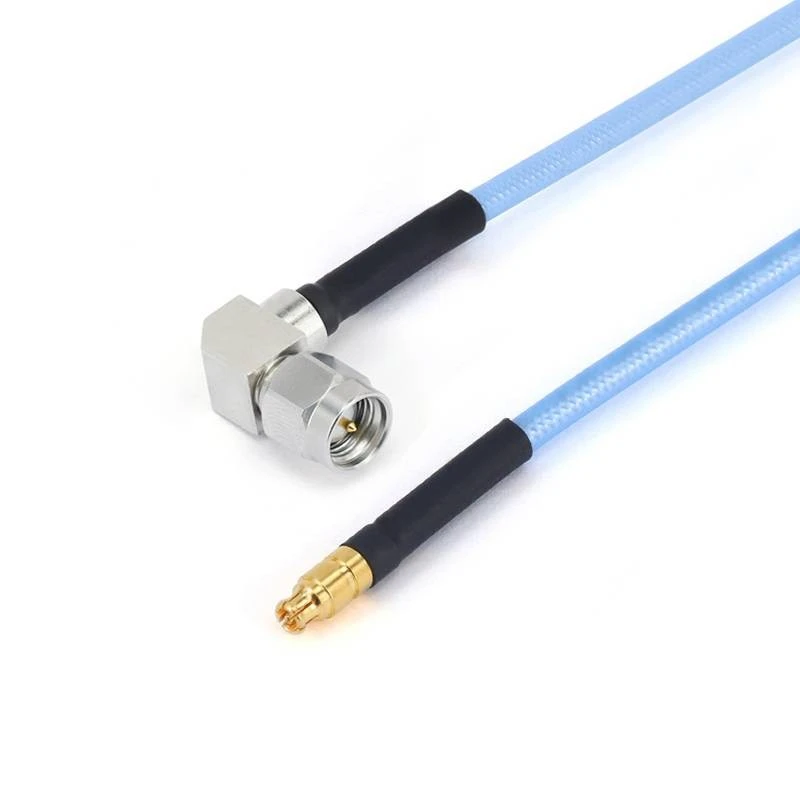

Fr 712- smwmgppf-xxx -18 g |
Sma gason ak ang dwat |
GPPO (Mini-SMP) Fi |
Dc -18 GHz |
15db |
|
|

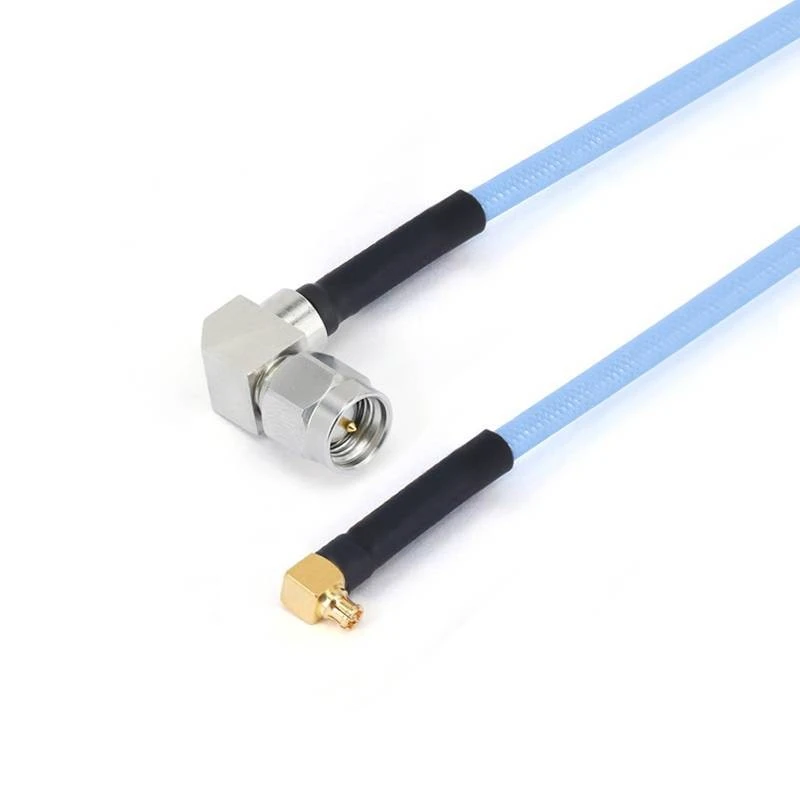

Fr 712- smwmgppwf-xxx -18 g |
Sma gason ak ang dwat |
GPPO (mini-SMP) fi ak ang dwat |
Dc -18 GHz |
15db |
|
|
Fr 712- smfgpf-xxx |
Sma fi |
GPO (SMP) Fi |
Dc -18 GHz |
1.35 |
|
|
Fr 712- smffgpf-xxx |
Sma fi ak 4 bride twou |
GPO (SMP) Fi |
Dc -18 GHz |
1.35 |
|
|
Fr 712- smfgppf-xxx |
Sma fi |
GPPO (Mini-SMP) Fi |
Dc -26.5 GHz |
1.40 |
|
|
Fr 712- smffgppf-xxx |
Sma fi ak 4 bride twou |
GPPO (Mini-SMP) Fi |
Dc -26.5 GHz |
1.40 |
|
|
Fr 712-292 M292m-xxx |
2.92mm gason |
2.92mm gason |
Dc - 40 GHz |
1.44 |
|
|
Fr 712-292 Mgpf-xxx |
2.92mm gason |
GPO (SMP) Fi |
Dc - 40 GHz |
10dB |
|
|
Fr 712-292 mgpwf-xxx |
2.92mm gason |
GPO (SMP) Fi ak ang dwat |
Dc - 40 GHz |
10dB |
|
|
Fr 712-292 fgpf-xxx |
2.92mm fi |
GPO (SMP) Fi |
Dc - 40 GHz |
10dB |
|
|
Fr 712-292 ffgpf-xxx |
2.92mm fi ak 4 bride twou |
GPO (SMP) Fi |
Dc - 40 GHz |
10dB |
|
|
Fr 712-292 mgppf-xxx |
2.92mm gason |
GPPO (Mini-SMP) Fi |
Dc - 40 GHz |
14dB |
|
|
Fr 712-292 mgppwf-xxx |
2.92mm gason |
GPPO (mini-SMP) fi ak ang dwat |
Dc - 40 GHz |
14dB |
|
|
Fr 712-292 fgppf-xxx |
2.92mm fi |
GPPO (Mini-SMP) Fi |
Dc - 40 GHz |
14dB |
|
|
Fr 712-292 ffgppf-xxx |
2.92mm fi ak 4 bride twou |
GPPO (Mini-SMP) Fi |
Dc - 40 GHz |
14dB |
|
|
Fr 712-292 mg3pf-xxx |
2.92mm gason |
G3PO (SMPS) Fi |
Dc - 40 GHz |
12dB |
|
|
Fr 712-292 fg3pf-xxx |
2.92mm fi |
G3PO (SMPS) Fi |
Dc - 40 GHz |
12dB |
|
|
Fr 712-292 ffg3pf-xxx |
2.92mm fi ak 4 bride twou |
G3PO (SMPS) Fi |
Dc - 40 GHz |
12dB |
|
|
Fr 712-185 mg3pf-xxx |
1.85mm gason |
G3PO (SMPS) Fi |
Dc - 67 GHz |
10dB |
|
|
Fr 712-185 fg3pf-xxx |
1.85mm fi |
G3PO (SMPS) Fi |
Dc - 67 GHz |
10dB |
|
|
Fr 712-185 ffg3pf-xxx |
1.85mm fi ak 4 bride twou |
G3PO (SMPS) Fi |
Dc - 67 GHz |
10dB |
|
FR711/zantray -085- fòm (san yo pa fep levit) |
|||||
|
Pòtre |
Sku |
Connector 1 |
Connector 2 |
Freqency |
Retounen Pèt/VSWR |
|
|
Fr 711- smmmmm-xxx |
Sma gason |
Sma gason |
Dc -26.5 GHz |
1.35 |
 |
Fr 11- SMMSMWM-XXX -18 G |
Sma gason |
Sma gason ak ang dwat |
Dc -18 GHz |
1.35 |
|
|

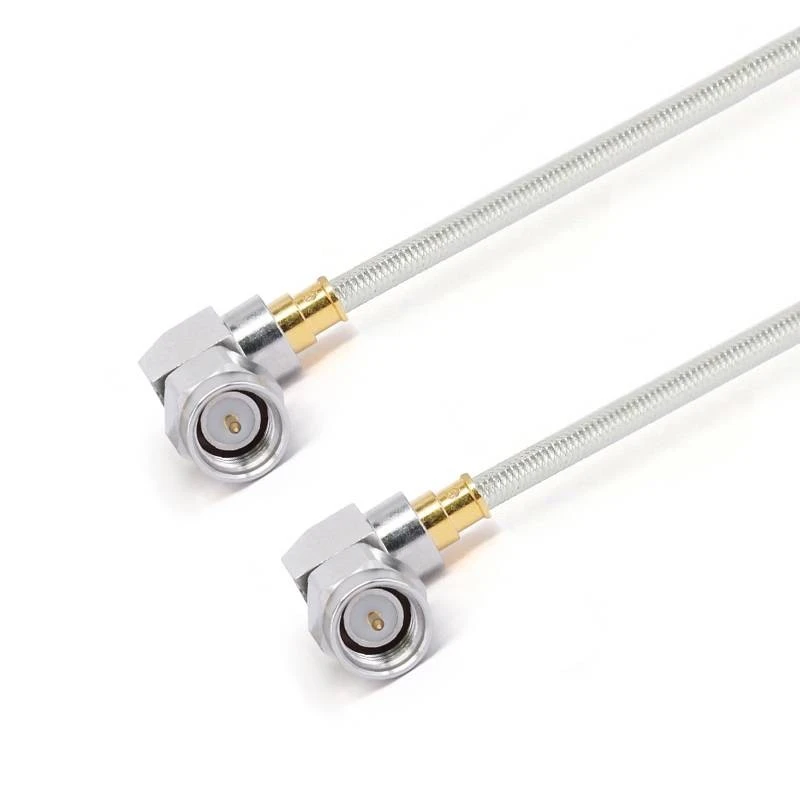

Fr 711- smwmsmwm-xxx -18 g |
Sma gason ak ang dwat |
Sma gason ak ang dwat |
Dc -18 GHz |
1.40 |
|
|

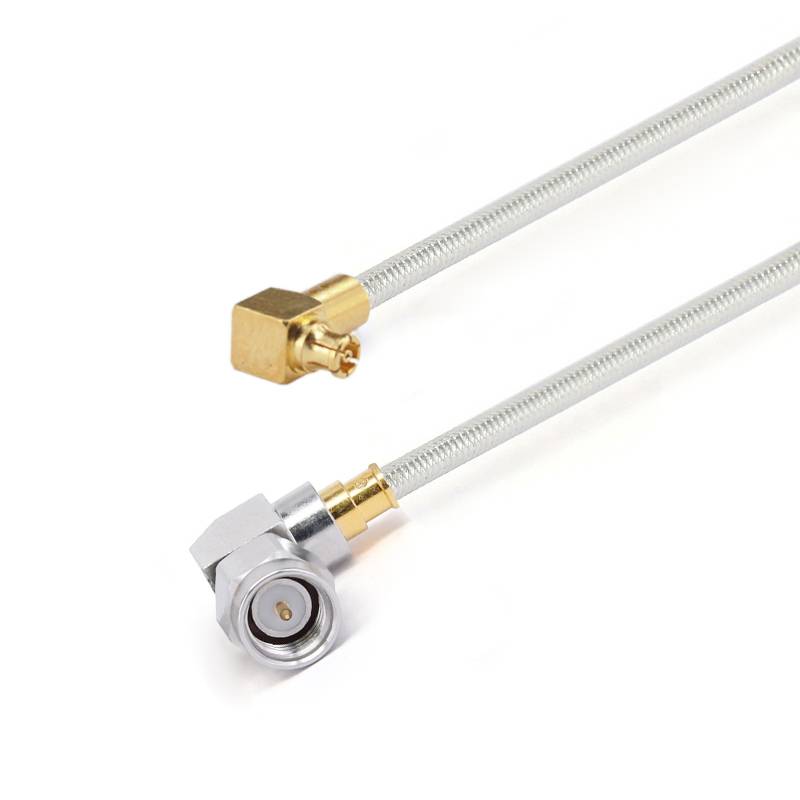

Fr 711- smwmgppwf-xxx -18 g |
Sma gason ak ang dwat |
GPPO (mini-SMP) fi ak ang dwat |
Dc -18 GHz |
1.40 |
|
|
Fr 711-292 mmmpxm-xxx |
2.92mm gason |
Mmpx gason |
Dc -40 GHz |
14dB |
|
|
R 711-292 mmmpxf-xxx |
2.92mm gason |
MMPX fi |
Dc -40 GHz |
14dB |
|
|
Fr 711-24 mmmpxm-xxx |
2.4mm gason |
Mmpx gason |
Dc -50 GHz |
12dB |
|
|
Fr 711-24 mmmpxf-xxx |
2.4mm gason |
MMPX fi |
Dc -50 GHz |
12dB |
|
|
Fr 711-185 mmmpxm-xxx |
1.85mm gason |
Mmpx gason |
Dc -67 GHz |
10dB |
|
|
Fr 711-185 mmmpxf-xxx |
1.85mm gason |
MMPX fi |
Dc -67 GHz |
10dB |
|
|
Fr 711-185 mg3pf-xxx |
1.85mm gason |
G3PO (SMPS) Femèl |
Dc -67 GHz |
10dB |
|
|
Fr 711-185 fg3pf-xxx |
1.85mm fi |
G3PO (SMPS) Femèl |
Dc -67 GHz |
10dB |
|
|
Fr 711-185 ffg3pf-xxx |
1.85mm fi ak 4 bride twou |
G3PO (SMPS) Femèl |
Dc -67 GHz |
10dB |
